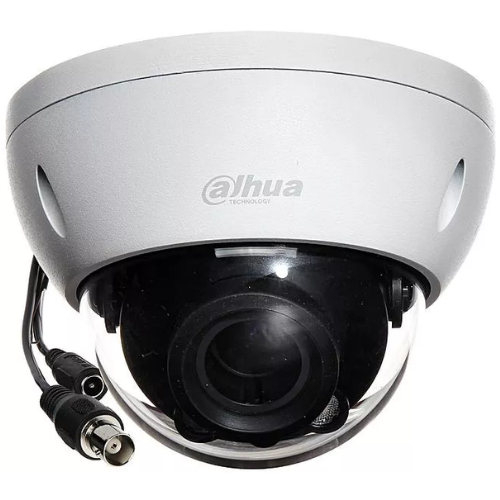

Dahua DH-HAC-HDBW2120RP-Z 1.4MP IR HDCVI Dome Camera

The Dahua DH-HAC-HDBW2120RP-Z is a 1.4MP HDCVI IR Dome Camera designed for reliable indoor and outdoor surveillance using existing coaxial (CCTV) infrastructure. It delivers stable HD video, strong night vision, and a compact vandal-resistant dome design, making it suitable for offices, homes, retail spaces, and institutions.

With a motorized varifocal lens and Smart IR technology, it provides flexible coverage and clear imaging even in complete darkness.

---

Key Features & Benefits

• 1.4MP HD 720p Resolution
  • Provides clear surveillance footage for general monitoring and security needs.
• Motorized Varifocal Lens
  • Allows remote zoom and focus adjustment for flexible scene coverage without manual intervention.
• Smart IR Night Vision
  • Delivers clear images in low-light and total darkness with automatic infrared control.
• HDCVI Technology
  • Enables long-distance HD transmission over coaxial cables without signal loss.
• Vandal-Resistant Dome Design (IK10 / Robust Housing)
  • Protects the camera from tampering, making it ideal for public and high-risk areas.

---

Technical Specifications

General

• Brand: Dahua
• Model: DH-HAC-HDBW2120RP-Z
• Camera Type: HDCVI Dome Camera
• Resolution: 1.4 Megapixel (720p HD)
• Installation: Indoor / Outdoor

---

Imaging

• Image Sensor: 1/3” Progressive Scan CMOS
• Resolution: 1280 × 720 (HD)
• Scanning System: Progressive
• Electronic Shutter: Auto / Manual

---

Lens

• Lens Type: Motorized Varifocal
• Focal Length: 2.7–12 mm (approx.)
• Focus Control: Remote motorized zoom & focus
• Viewing Angle: Adjustable wide to narrow coverage

---

Night Vision

• Infrared LEDs: Yes
• IR Distance: Up to 60 meters
• Smart IR: Automatic intensity adjustment
• Day/Night Mode: IR Cut Filter (ICR)

---

Video Features

• HDCVI Transmission Technology
• Digital Wide Dynamic Range (DWDR)
• Backlight Compensation (BLC)
• Highlight Compensation (HLC)
• 2D Noise Reduction (2D NR)
• Automatic Gain Control (AGC)
• White Balance (AWB)

---

Connectivity

• Video Output: HDCVI (BNC)
• Cable Type: Coaxial
• Power Input: 12V DC

---

Environmental

• Weather Protection: IP67
• Vandal Resistance: IK10-rated housing
• Operating Temperature: -30°C to +60°C
• Humidity: ≤95% RH

---

Physical Specifications

• Camera Type: Dome
• Material: Metal housing
• Color: White
• Mounting: Ceiling / Wall mount

---

Pros

• Strong HD surveillance performance
• Motorized zoom for flexible installation
• High IR range up to 60m
• Vandal-resistant dome housing
• Works with existing HDCVI DVR systems
• Reliable long-distance signal transmission
• Suitable for indoor and outdoor use

---

Cons

• Lower resolution compared to modern IP cameras
• Requires DVR (not standalone network camera)
• No built-in Wi-Fi or smart AI analytics
• Limited scalability compared to IP systems

---

Ideal For

• Offices and commercial buildings
• Retail shops and supermarkets
• Schools and institutions
• Residential buildings
• Parking areas
• Elevators and public indoor spaces
• Upgrading analog CCTV systems

---

Available from Novelty Tech Solution
Location: Revlon Professional Plaza, Mezzanine 2, Shop Number 1, Nairobi CBD, Kenya.
