Description

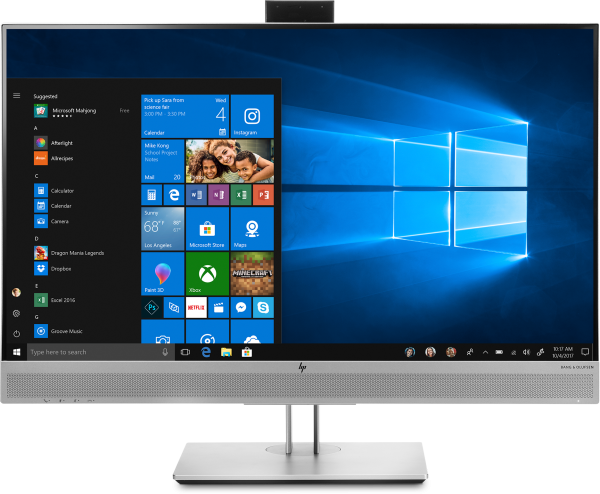

Hp EliteDisplay E273m

User controls

Specification
Description
Monitor control buttons or switches
Menu
Information/Auto-adjust (assignable)
Minus (“- “)/Down/Information
Viewing mode (assignable)
Next active input (assignable)
User-assignable function buttons
12
Languages
10 (English, Spanish, German, French, Italian, Dutch, Portuguese, Japanese, Simplified Chinese, and Traditional Chinese)
Skype control buttons
Volume Down/Up, Answer call, Mute microphone, Mute volume, and Hang-up call
On-screen Display (OSD) user controls
Brightness, Contrast, Color Control, Input Control, Image Control, Power Control, Menu Control, Management, Language, and Information.

Signal interface/performance

Specification
Description
Native resolution
1920 x 1080 at 60 Hz
Preset VESA graphic modes (non-interlaced)
640 x 480 at 60 Hz
720 x 400 at 70 Hz
800 x 600 at 60 Hz
1024 x 768 at 60 Hz
1280 x 720 at 60 Hz
1280 x 800 at 60 Hz
1280 x 1024 at 60 Hz
1440 x 900 at 60 Hz
1600 x 900 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 Hz
Pixel clock (maximum)
170 MHz (VGA, DisplayPort, and HDMI)
Vertical frequency
50 – 60 Hz
Horizontal frequency
30 – 80 kHz

Video/other inputs/cables

Specification
Description
Connector types
(1) HDMI 1.4
(1) DisplayPort (DP) 1.2

NOTE:

HDCP supported for HDMI and DisplayPort (DP).
(1) VGA
Audio
(1) Audio line in
(1) Audio-out jack
USB port
(2) USB Type-A 3.0 (downstream)
(1) USB Type-C (upstream)
Specifications
5 GB/sec (maximum)
15 W (5V, 3A)
Cables
(1) VGA 1.8 m (5.9 ft) cable
(1) DisplayPort 1.8 m (5.9 ft) cable
(1) USB Type-C to Type-A 1.8 m (5.9 ft) cable

Multimedia

Specification
Description
Audio
Audio-out (connects headphone)
(1) Audio line in
(1) Audio-out jack
Speakers output power
2 W per channel
Tuned by Bang & Olufsen
Webcam (integrated)
720p HD Webcam with dual digital microphones
Pop-up type for privacy
Microsoft Certified Skype for Business
Microsoft Certified Skype for Business, (Pop-up type for privacy) 720p Integrated HD Webcam with Dual Digital Mics

Ergonomics

Specification
Description
Plug and play
Yes
Tilt range
-5° to +22° vertical
Swivel range
45°L to 45°R
Pivot rotation
90° (clockwise and counter-clockwise)
Detachable stand
Yes (ships detached)
Height adjustment
150 mm (15 cm)
Cable management
Integrated
Effortless routing of cables through the stand
Color
Silver
Bezel, side frame, column stand, and foot
Black
Rear cover and stand center trim
VESA mount
100 mm (3.94 in) with integrated mount (included)
Security lock-ready
Yes

Power

Specification
Description
Power supply
Internal
Input power
100 – 240 VAC at 50/60 Hz
Maximum power
68 W

NOTE:

Maximum power is measured with monitor at maximum brightness and with USB ports loaded at 100% of maximum.
Typical power
32 W

NOTE:

Default power is measured with factory defaults, including factory default brightness and USB ports loaded at 25% of maximum.
Energy saving/standby mode
0.5 W
Power cable length
1.9 m (6.23 ft)

Physical specifications

Specification
Description
Dimensions (W × D × H)
Unpacked with stand (highest setting)
61.09 x 21.39 x 53.39 cm (24.05 x 8.42 x 21.02 in)
Packaged
70.7 x 28.2 x 48.0 cm (27.83 x 11.10 x 18.90 in)
Head only
61.09 x 4.75 x 38.90 cm (24.05 x 1.87 x 15.32 in)
Weight
Unpacked
7.9 kg (17.41 lb)
Packaged
11.23 kg (24.76 lb)
Head only
5.05 kg (11.13 lb)

What’s in the box?

Specification
Description
Monitor and accessories
HP EliteDisplay E273m 27-inch Monitor
AC power cord
VGA cable
DisplayPort 1.2 cable
USB 3.0 Type-C to Type-A cable
Other contents
CD
Documentation
Software included
HP Display Assistant (with CD)

Environmental

Specification
Description
Temperature
Operating
5° to 35°C (41° to 95°F)
Non-operating
-20° to 60°C (-4° to 140°F)
Humidity
Operating
20% to 80% non-condensing
Non-operating
5% to 95% (38.7°C maximum wet-bulb)
Altitude
Operating
0 to 5,000 m (0 to 16,400 ft)
Non-operating
0 to 12,192 m (0 to 40,000 ft)
Arsenic-free display glass
Yes
White LED backlights
Yes
Mercury-free display backlighting
Yes
Low halogen
Yes (except cables)

NOTE:

External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.
Eco-label certifications & declarations
ENERGY STAR
EPEAT Gold (registration varies by country/region)
CEL Grade 2
Microsoft WHQL certification (Windows 7 and 10)
TCO certified edge
SmartWay transport partnership (North American countries/regions only)
CE
CB
KC
KCC
NOM
PSB
ICE
TUV-S
ISO 9241-307
EAC
UL
CSA
PSB
ISC
CCC
CECP
ISC
VCCI
FCC
BSMI
Vietnam MEPS
ANZ MEPS
WEEE
