18U Wall Mount Cabinet (600 x 450mm): The Compact IT Organization Solution

18U Wall Mount Cabinet 600x450mm: The Complete Guide

An 18U Wall Mount Cabinet with 600mm x 450mm dimensions is the ideal solution for organizing and protecting critical network equipment in spaces where a full-size server rack isn’t feasible. Perfect for server rooms, network closets, retail environments, and small offices, this cabinet brings order, security, and professional cable management to your IT infrastructure.

This definitive guide covers everything you need to know before purchasing and installing an 18U wall-mount cabinet.

18U Wall Mount Cabinet: Full Technical Specifications

Key Features Explained

1. “18U” Height and What It Holds

• What is a “U”? A “U” (or Rack Unit) is a standard measurement equal to 1.75 inches (44.45mm). It defines the height of equipment designed to mount in a 19-inch rack.

• What fits in 18U? This size is versatile for small to medium setups. Here’s a typical configuration:

  • 1U: Patch Panel (24-port)

  • 2U: Network Switch (24/48 port)

  • 2U: Server or NAS

  • 1U: Router/Firewall

  • 1U: PDU (Power Distribution Unit)

  • 2U: UPS (Uninterruptible Power Supply)

  • Remaining Space: Plenty of room for cable management, blanking panels, and future expansion.

2. 600mm x 450mm Footprint

• 600mm Width: Standard external width to accommodate 19″ equipment and provide side space for cables.

• 450mm Depth: This is a shallow-depth cabinet. It is designed for network gear, not deep servers.

  • Fits Perfectly: Most switches, routers, patch panels, and smaller UPS units.

  • Check Depth: Ensure your deepest piece of equipment (especially a UPS) has enough clearance, including space for power cables at the back.

3. Wall Mount Design & Weight Capacity

• Space-Saving: Mounts securely to sturdy wall studs (concrete or solid brick is ideal), keeping equipment off the floor and safe from spills, kicks, and dust.

• Critical Consideration: The 100-150 kg weight capacity includes the weight of all equipment and the cabinet itself. You must ensure your wall can structurally support this static load. Professional installation is often recommended.

4. Security & Ventilation

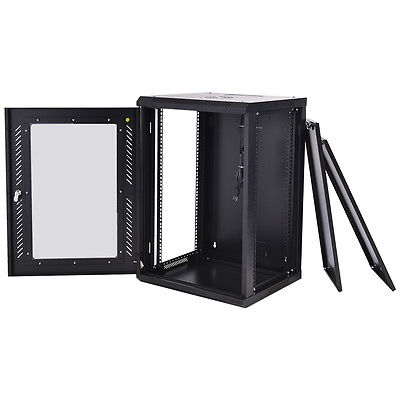

• Lockable Doors: Prevents unauthorized physical access to sensitive network hardware. A glass front door allows for visual status checks without opening the cabinet.

• Perforated Doors: Facilitates passive airflow to keep equipment from overheating. For high-density gear, optional fan panels can be added.

Performance and Real-World Use

• Strengths:

  • Maximizes Space: Ideal for tight spaces like wiring closets or behind retail counters.

  • Professional Organization: Centralizes equipment, reduces cable spaghetti, and simplifies maintenance.

  • Equipment Protection: Shields expensive gear from dust, accidental damage, and tampering.

  • Improved Airflow: Organized cables and proper ventilation lead to better cooling than an open rack.

• Weaknesses:

  • Shallow Depth: Cannot accommodate deep server chassis or some full-size UPS units.

  • Weight Limit: The wall’s structural integrity is paramount; improper mounting is a severe safety hazard.

  • Fixed Size: No expansion possible; you must plan your equipment layout within the 18U limit.

Ideal Use Cases

This cabinet is perfect for:

• Small Business Network Closets: Consolidating core networking gear.

• IP Security System Setups: Housing the Network Video Recorder (NVR), switches, and patch panels for surveillance systems.

• Audio/Visual Racks: Organizing amplifiers, mixers, and AV over IP equipment.

• Retail & Hospitality Point-of-Sale (POS) Hubs: Securing the network backbone for registers and kiosks.

• Server Rooms for SMBs: Hosting a primary server, network infrastructure, and a backup UPS.

Who Should Consider an Alternative?

• Users with Deep Servers: Need a 600mm or 800mm deep cabinet.

• Plans for Significant Future Expansion: A floor-standing cabinet (42U) offers more room and doesn’t rely on wall strength.

• Environments with Heavy Equipment: If total gear weight will exceed 150kg, a free-standing rack is mandatory.

Pre-Installation Checklist

1. Measure Your Deepest Device: Confirm it fits within the ~420mm usable depth with cables.

2. Calculate Total Weight: Add the weight of all equipment and the cabinet. Ensure your wall can hold it.

3. Find Wall Studs: Use a stud finder to locate solid wooden studs, concrete, or brick for anchoring.

4. Gather Tools: You’ll need a level, a powerful drill, appropriate anchors/lag bolts, and a helper.

Verdict: Is an 18U Wall Mount Cabinet Right for You?

Yes, if you need a professional, space-saving enclosure for standard-depth network equipment and have a structurally sound wall for mounting.

The 18U (600x450mm) wall mount cabinet is the workhorse of small-scale IT installations. It strikes a perfect balance between capacity and footprint, offering enough space to build a robust network core while keeping everything secure and organized.

Final Recommendation: This cabinet is a superb investment for any business or serious hobbyist looking to transition from a messy shelf of equipment to a reliable, professional-grade IT environment. Always prioritize structural safety during installation.
