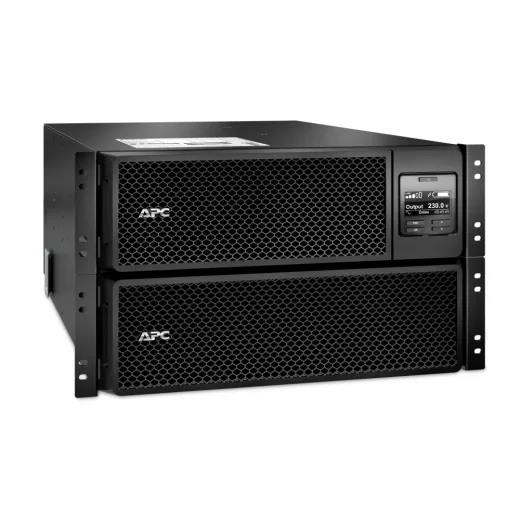

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V

APC Smart-UPS On-Line Output power capacity

10.0kWatts / 10.0kVA
Rack Height

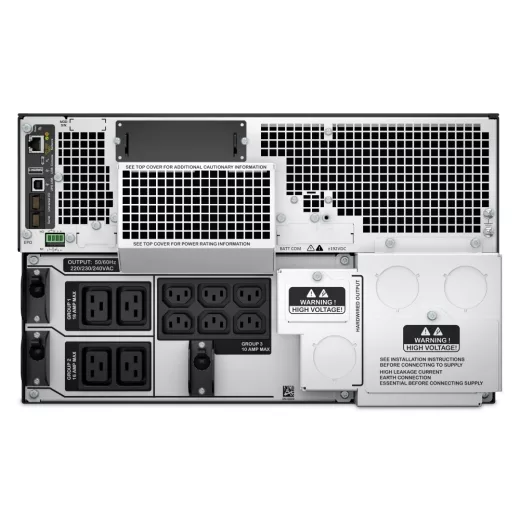

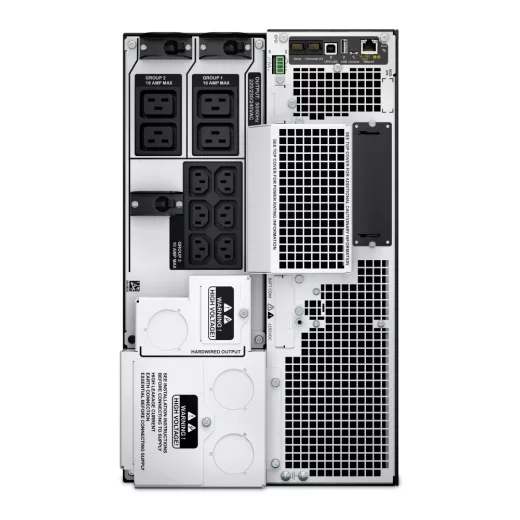

APC Smart-UPS On-Line Output Connections

(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(3) IEC Jumpers (Battery Backup)
(4) IEC 60320 C19 (Battery Backup)
(1) Hardwire 3-wire (H N + E) (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
Nominal Output Voltage

Nominal Input Voltage

230V, 400V 3PH
Input Connections

Hardwire 3-wire (1P + N + E), Hardwire 5-wire (3P + N + E)
APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
High-density, double-conversion online power protection with scalable runtime.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Green mode
    The patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters, and alarms.

APC Smart-UPS On-Line Features & Benefits


Serial connectivity

Provides management of the UPS via a serial port.
Network manageable

Most models provide remote power management options for the UPS over the network. Many do not have NMC embedded.
LED status indicators

Quickly understand unit and power status with visual indicators.
Intelligent Card Slot

Customize UPS capabilities with management cards.
InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

APC Smart-UPS On-Line Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.
Audible alarms

Provides notification of changing utility power and UPS power conditions
Disconnected battery notification

Warns when a battery is not available to provide backup power.
Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.
APC Smart-UPS On-Line

APC Smart-UPS On-Line Availability

Temperature-compensated battery charging

Prolong battery life by regulating the charge voltage according to battery temperature.
Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Scalable runtime

Allows additional run time to be quickly added as needed.
Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.
Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

APC Smart-UPS On-Line Protection

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Cold-start capable

Provides temporary battery power when the utility power is out.

APC Smart-UPS On-Line Adaptability

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.
Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

APC Smart-UPS On-Line Marketing Features

Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature-compensated charging. Automatic self-tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy-to-connect, hot-swappable battery modules provide battery replacement without powering down.
Save time with easy and convenient remote/network accessibility.

Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Avoids costly power problems by keeping your IT equipment and data protected and available.

Network-grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to the battery during power events.
Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency-tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
