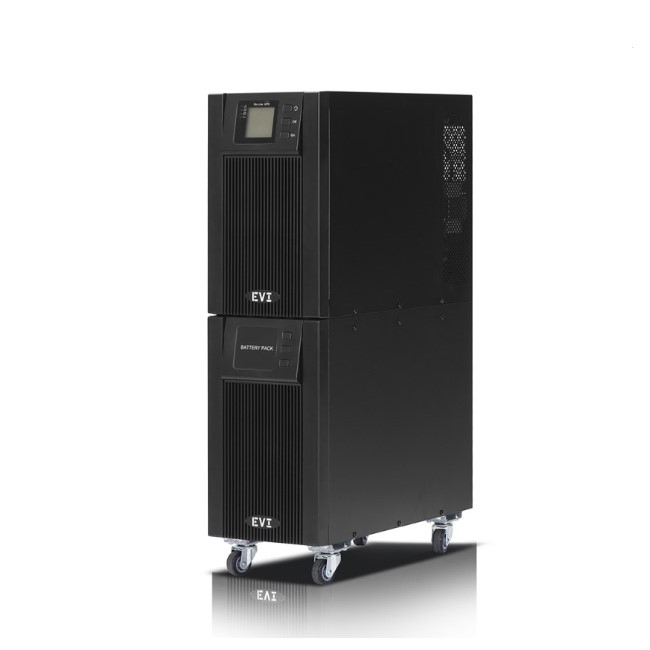

EVI 6000VA / 5400W Tower Online Single-Phase UPS
EVI 6000VA / 5400W Tower Online Single-Phase UPS is priced at Kes 142,000 here at Novelty Tech Solution in Nairobi, Kenya
Model & Topology
-
Model: EP-UPS6000Y11OT
-
Rated Capacity: 6,000 VA / 5,400 W
-
Topology: Online Double-Conversion with DSP control
Electrical Inputs & Outputs
| Spec | Value |
|---|---|
| Input Voltage Range | 120 – 276 VAC |
| Input Frequency Range | 50 Hz: ~45-55 Hz 60 Hz: ~54-66 Hz |
| Input Power Factor | ~0.99 |
| Output Power Factor | 0.9 PF |
| Voltage Regulation | ±1% |
| Output Frequency Stability | Very tight—around ±0.1 Hz in battery mode for the nominal frequency (50 Hz or 60 Hz) |
Battery & Backup / Charging
| Spec | Value |
|---|---|
| Battery Type | Sealed Lead Acid (SLA), with optional Lithium in some variants |
| Standard Battery Configuration | 16 × 7 Ah batteries |
| Typical Backup Time | ~15-30 minutes at a “typical” load (i.e. less than full load) |
| Charging Time | ~6-8 hours to reach ~90% battery capacity after a discharge |
| Expandable Runtime | Yes — supports external battery packs to extend backup duration |
Features & Protections
-
ECO mode for improved efficiency when power grid is stable.
-
Cold-Start capability: the UPS can power up directly from its batteries without mains.
-
Generator compatibility.
-
Self-testing (diagnostic on startup).
-
Communication Ports: USB, RS-232; optional SNMP card, Parallel card, Relay card for more advanced control and monitoring.
-
LCD Display: Rotating or front-facing LCD for status / measurement (load, battery, bypass etc.)
-
Audible alarms for conditions such as power failure, low battery, overload, fault.
-
Warranty: 2 years for the unit; battery warranty typically 1 year.
Physical and Environmental
| Spec | Value |
|---|---|
| Dimensions (approx.) | 500 mm (Depth) × 438 mm (Width) × 88 mm (Height) |
| Weight | ~18 kg |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 0‐95 % RH, non-condensing |
| Noise Level | Less than 55 dB at 1 meter |
Use & Suitability
This UPS is suitable for:
-
Data Centers / Server Rooms needing backup for multiple servers or racks.
-
Critical systems in medical, telecom, industrial automation.
-
Environments with unstable or variable mains power, or frequent generator use.
-
Situations needing moderate runtime (15-30 min) with possibility to expand runtime via external batteries.
