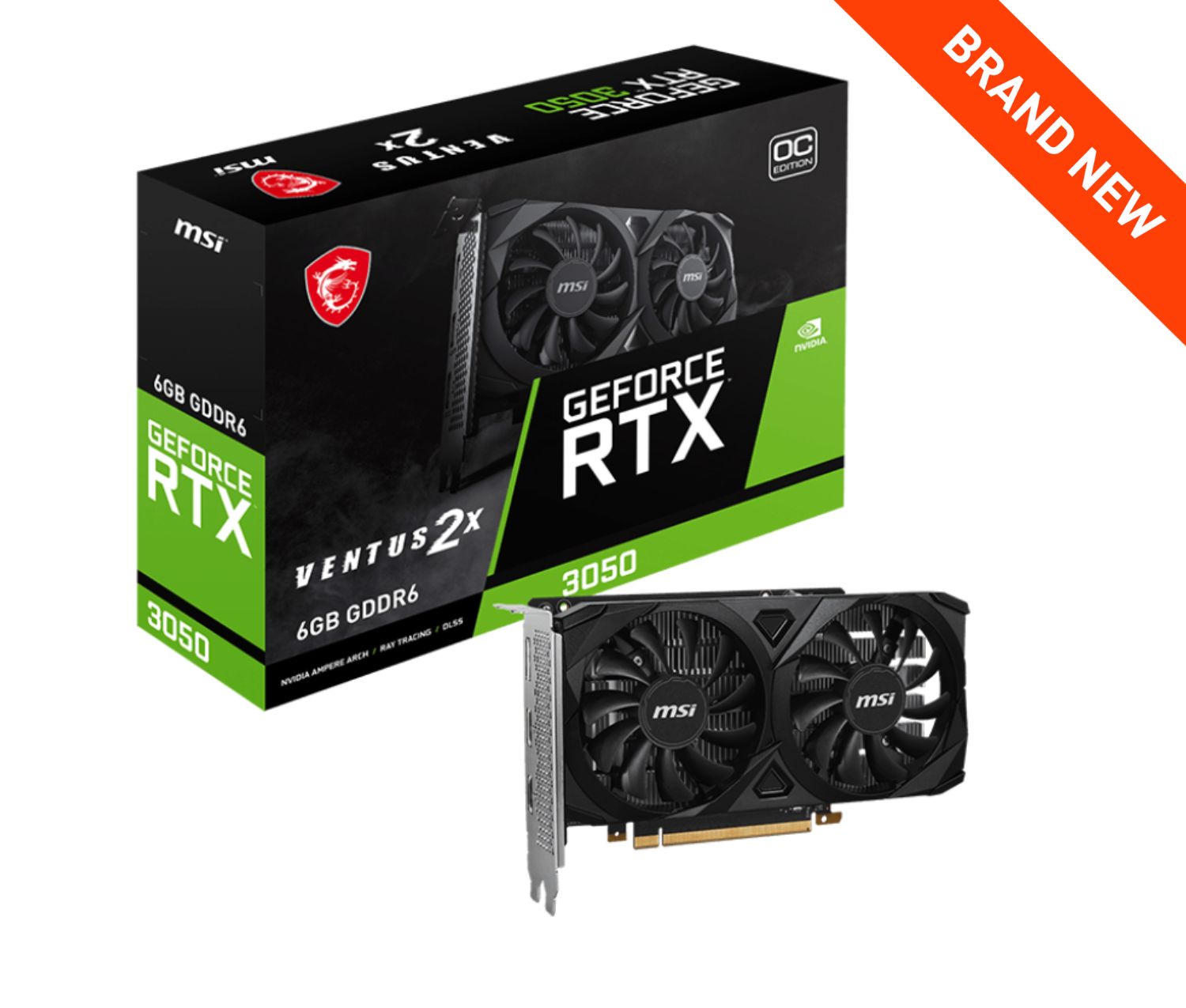

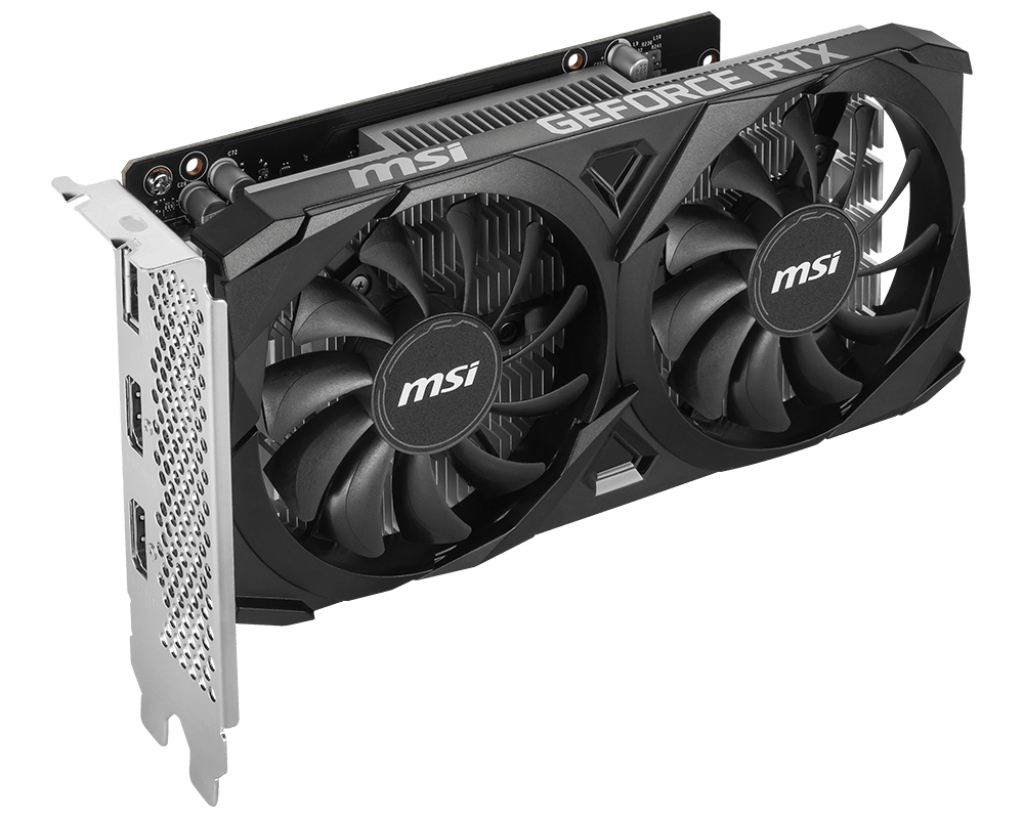

GeForce RTX™ 3050 VENTUS 2X 6G OC
Core Specs & Architecture
-
GPU: NVIDIA Ampere‑based RTX 3050 with 2 304 CUDA cores, 2nd-gen RT cores, and 3rd-gen Tensor cores for DLSS support
-
Boost Clock: Factory‑overclocked to 1 492 MHz (typical OEM configuration)
-
Memory: 6 GB GDDR6 at 14 Gbps on a 96‑bit bus (~168 GB/s)
Board & Power Design
-
Power Delivery: Entirely powered by the PCIe slot (70 W TGP), with no external PCIe connectors
-
Recommended PSU: 300 W total system power recommended
Display Outputs & Interface
-
Slots: PCIe Gen 4 x16 interface, internally wired as x8 (compatible with PCIe 3.0 downwards)
-

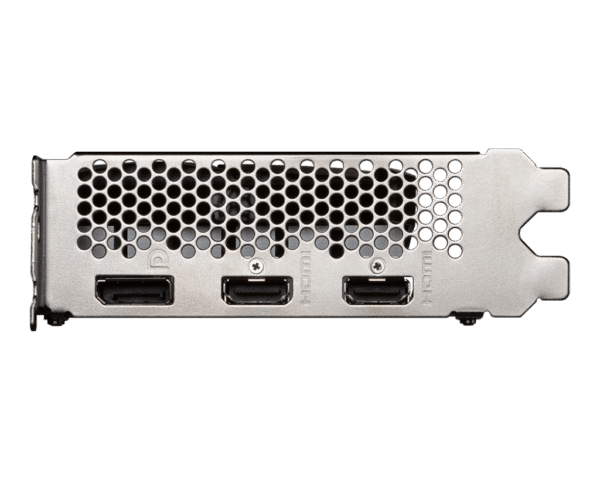

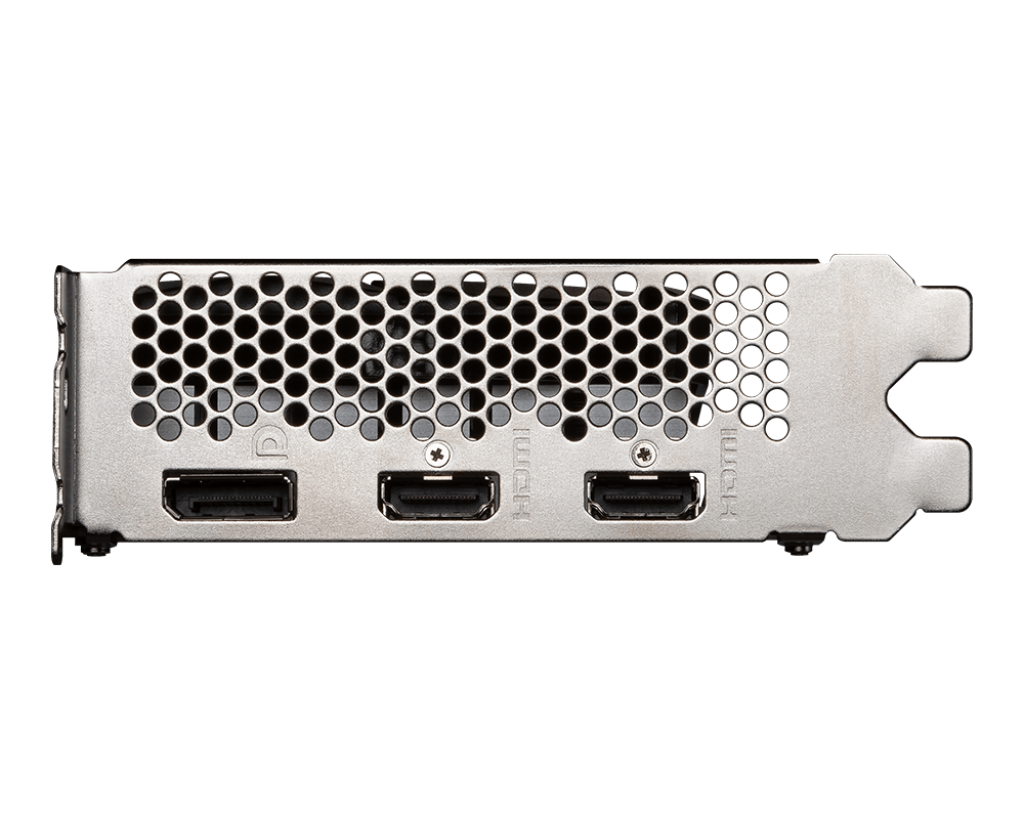

Video Outputs:
-
1× DisplayPort 1.4a
-
2× HDMI 2.1 (supporting up to 4K @ 120 Hz or 8K @ 60 Hz)
-
-
Max Digital Resolution: 7680 × 4320 (8K)
Physical Specs
-
Dimensions: ~189 × 109 × 42 mm (≈7.4″ × 4.3″ × 1.7″), occupying two PCIe slots
-
Weight: ~381 g (card only), ~610 g packaged
Cooling & Acoustics
-

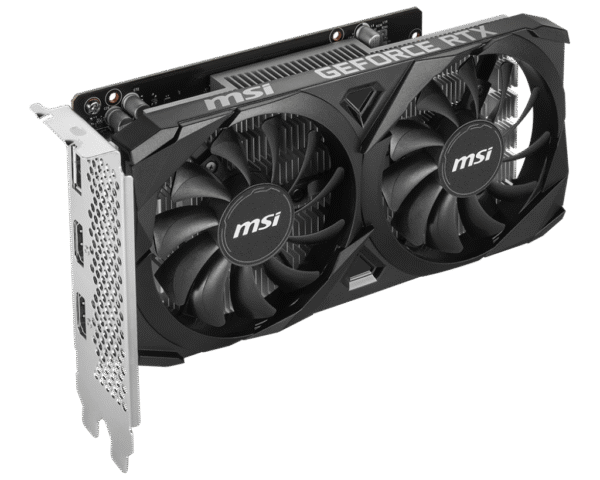

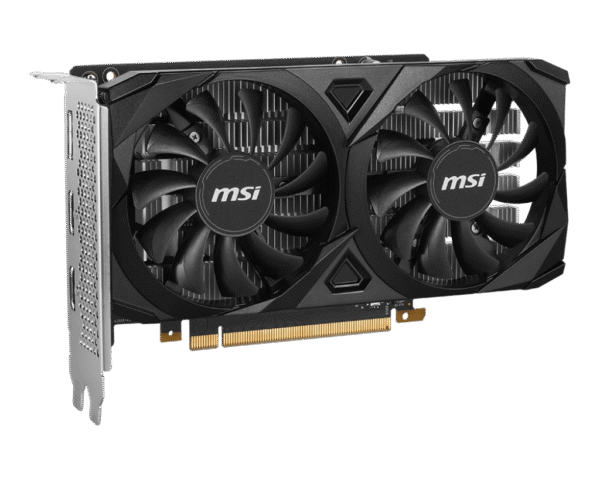

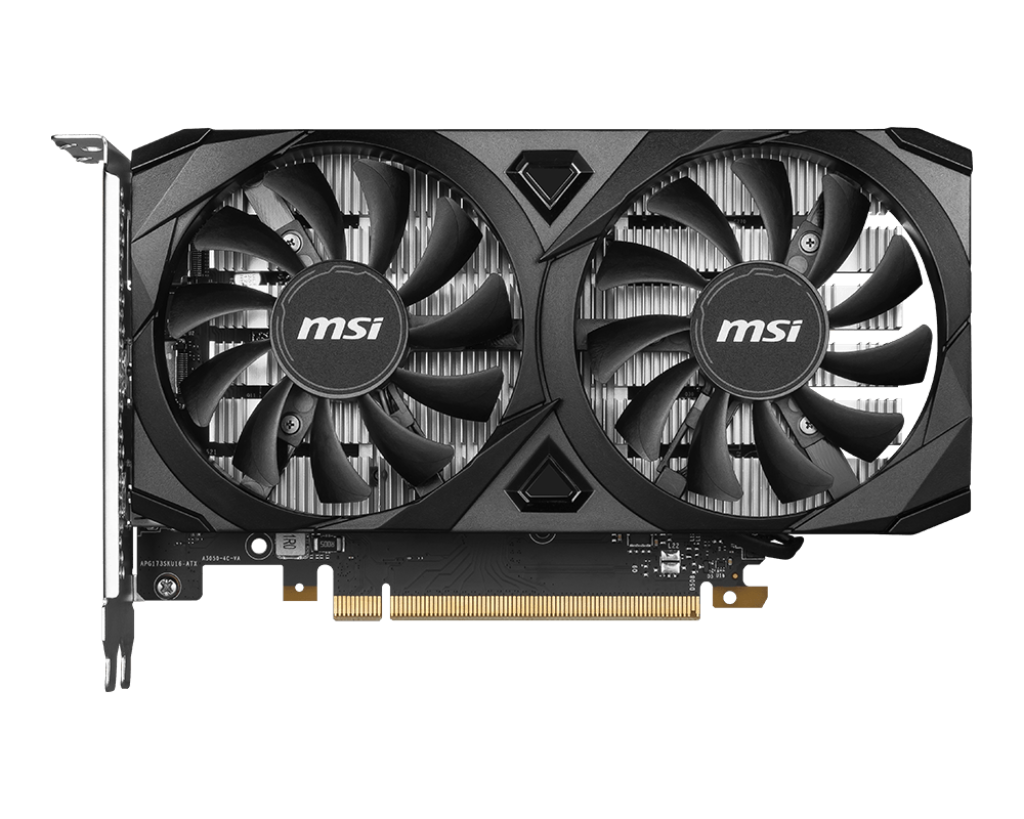

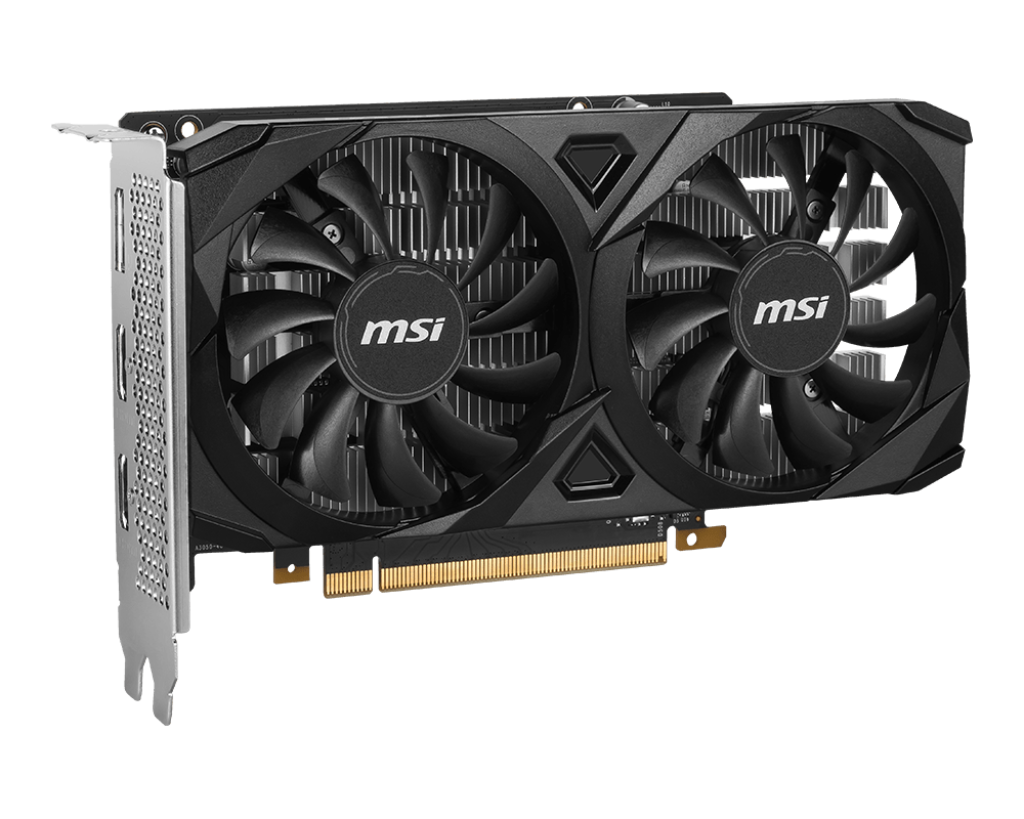

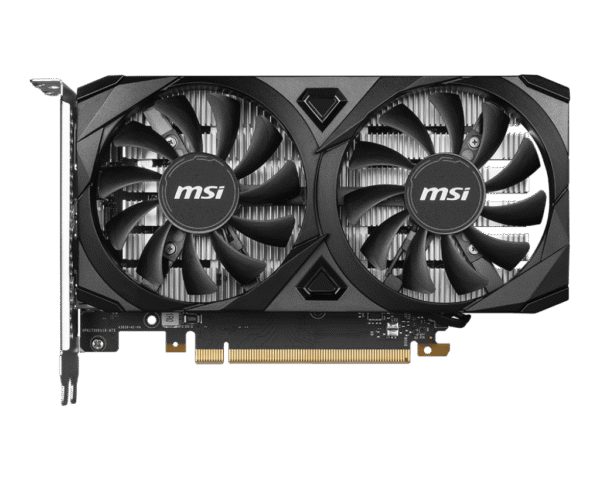

Cooling Design: Dual-fan heatsink with Zero Frozr, stopping fans at idle temperatures for silent operation
-
Thermal Performance: Users note the Ventus design runs a bit hotter and louder compared to higher-tier MSI cards—but given the low TGP (70 W), most find it manageable if case airflow is adequate
Performance & Use Cases
-
Provides solid 1080p gaming, but limited for ray tracing; performs closer to a GTX 1660 Super than an RTX 2060 or higher-tier models
-
DLSS and basic RTX effects are supported—but real-time ray tracing may significantly reduce framerates in demanding titles
Community Insights & Considerations
-
Ventus Series Tradeoffs: Positioned as MSI’s entry-tier design—cut corners on cooling relative to premium lines like Gaming X or Trio. Some reviews note higher noise levels and temperature under load
-
Cryptic “OC” Label: The 1 492 MHz boost clock is a modest factory overclock. The card still uses GPU Boost dynamic overclocking. Manual undervolting or tweaks via MSI Afterburner can yield thermal or power improvements
-
Compatibility Note: It operates on PCIe 4.0 x16 slots but falls back to x8 speed on Gen 3 boards—only a minor performance drop in most games
-
Power Delivery: Uses no extra power cables, fully powered from slot. Good for limited or small PSUs; downside might be thermal/performance ceiling due to limited TGP
Quick Specs Table
Specification | Details |
---|---|
GPU/Core | RTX 3050, 2 304 CUDA cores |
Boost Clock | 1 492 MHz (factory OC) |
Memory | 6 GB GDDR6 @ 14 Gbps, 96‑bit bus |
TGP | 70 W (slot-powered) |
Recommended PSU | 300 W |
Outputs | 1× DP 1.4a, 2× HDMI 2.1 |
Interface | PCIe 4.0 x16 (uses x8) |
Size (L×H×W) | 189 × 109 × 42 mm |
Weight | 381 g |
Cooling | Dual fans with Zero Frozr tech |
Ray Tracing / DLSS | Basic support, modest performance |
Summary
The MSI RTX 3050 VENTUS 2X 6G OC is an affordable, low-power entry-level RTX option ideal for 1080p gaming builds on tight budgets or limited PSU systems. Its slim, slot-powered design lacks the thermal performance of higher MSI variants, making it best suited for well-ventilated cases. If you’re looking for more robust ray tracing capability or lower noise, consider stepping up to RTX 3060 or AMD RX 6600 eqivalent cards.
