Description

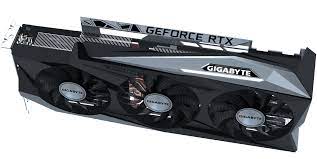

Gigabyte GeForce RTX 3080

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

Specifications

Graphics Processing GeForce RTXโ„ข 3080
Core Clock 1โ€Ž800 MHz (Reference Card: 1710 MHz)
CUDAยฎ Cores 8โ€Ž704
Memory Clock 1โ€Ž9000 MHz
Memory Size 1โ€Ž0 GB
Memory Type GDDR6X
Memory Bus 3โ€Ž20 bit
Memory Bandwidth (GB/sec) 7โ€Ž60 GB/s
Card Bus PCI-E 4.0 x 16
Digital max resolution 7โ€Ž680ร—4320@60Hz
Multi-view 4โ€Ž
Card size L=320 W=129 H=55 mm
PCB Form ATX
DirectX 1โ€Ž2 Ultimate
OpenGL 4โ€Ž.6
Recommended PSU 7โ€Ž50W
Power Connectors 8โ€Ž pin*2
Output DisplayPort 1.4a *3
HDMI 2.1 *2
