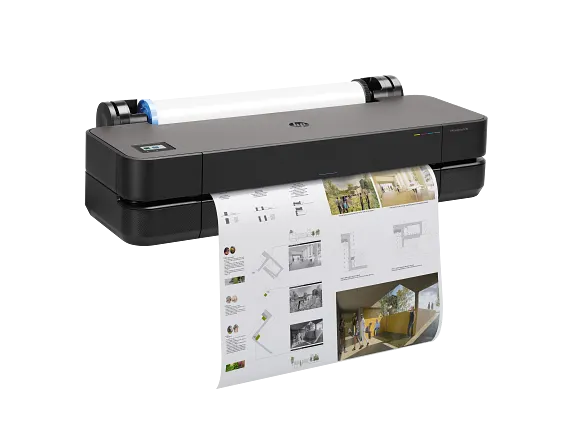

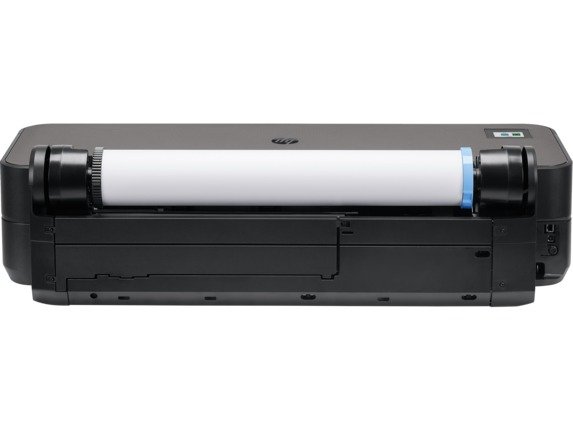

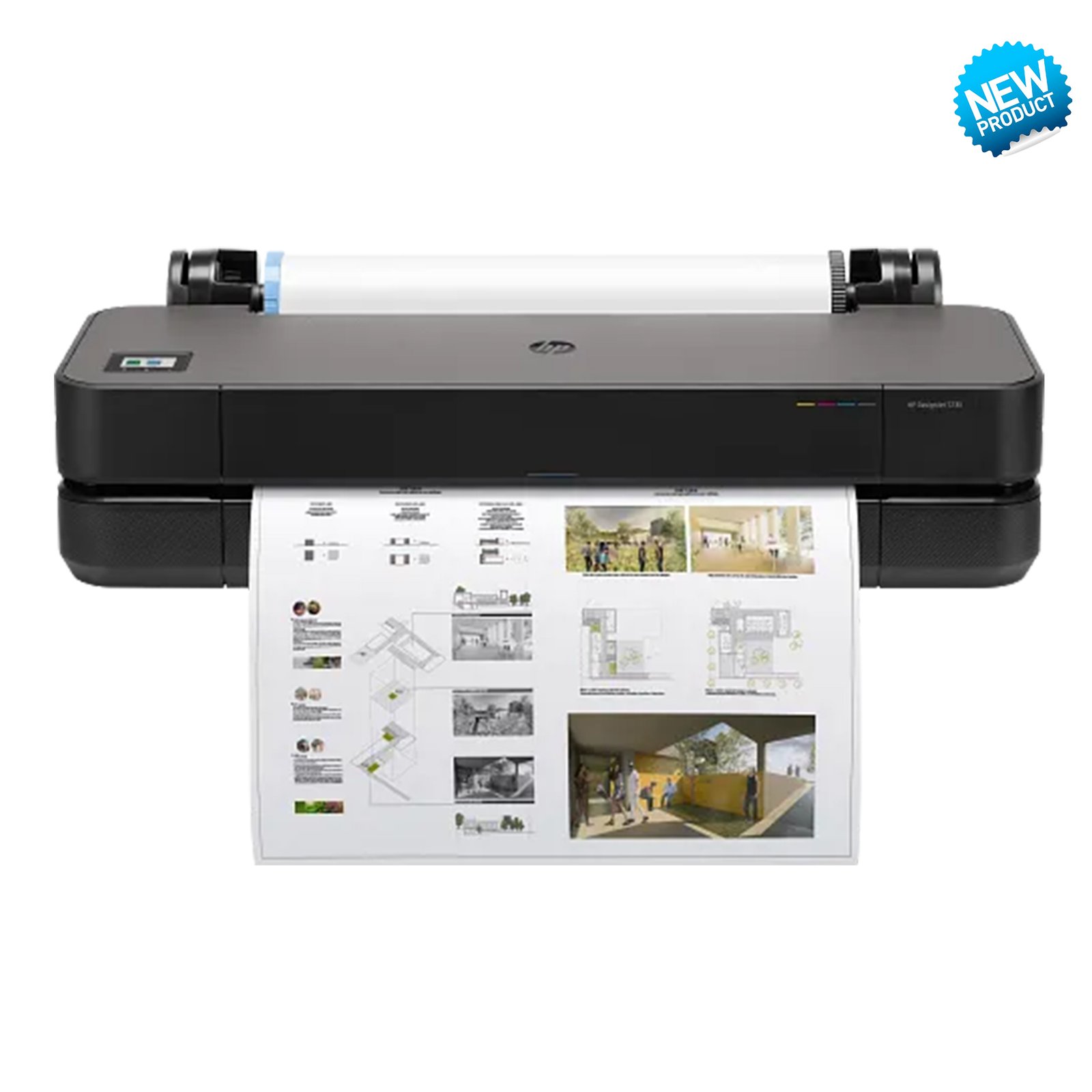

HP DesignJet T230 24-inch Large-Format Printer
Short Product Description
The HP DesignJet T230 is a compact 24-inch large-format printer/plotter engineered for architects, engineers, designers and creative studios seeking A1-sized output with professional line accuracy and connectivity. Featuring roll-feed and sheet options, high resolution up to 2400 × 1200 dpi, and WiFi/Ethernet/USB connectivity, it’s a strong choice for moderate-volume wide-format printing.
Key Features
Print speed: approx. 35 seconds for an A1 (22 × 34″) sheet.
Maximum print resolution: up to 2400 × 1200 optimized dpi.
Media handling: supports cut sheets and rolls (width up to 610 mm/24″), media types range from bond/coated to film/self-adhesive.
Connectivity options: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, WiFi 802.11a/b/g/n, and WiFi Direct.
Compact size for a large-format printer: Dimensions: 1013 × 440 × 285 mm (W×D×H), weight approx. 21.5 kg.
Energy consumption: < 35 W printing, < 5.6 W ready, < 2.1 W sleep, < 0.2 W off.
Print technology: HP Thermal Inkjet, 4 individual cartridges (C, M, Y dye inks; K pigment black).
Technical Specifications
| Specification | Detail |
|---|---|
| Model width | 610 mm (24 inch) |
| Max media width | 610 mm (roll) |
| Max media length | Up to 1897 mm (custom size) |
| Line accuracy | ±0.1% |
| Print head nozzles | 1 print head (C, M, Y, K) with 1376 nozzles |
| Ink drop size | 5.5 pl (C/M/Y), 12 pl (K) |
| Memory | 512 MB |
| Dimensions (W×D×H) | 1013 × 440 × 285 mm |
| Weight | 21.5 kg (approx) |
| Power input | 100-240 V, 50/60 Hz |
| Supported OS | Windows & macOS (drivers provided) |
Why Buy from Novelty Tech?
At Novelty Tech (Kenya), we specialise in supplying trusted large-format printing solutions for creative studios, architectural firms, engineering consultancies and print-service providers. Choosing the DesignJet T230 via Novelty Tech means:
Local stock & warranty support in Kenya — minimising downtime.
Pre-sale consultation to ensure your media, workflow and workspace match the printer’s specs.
After-sales service and consumable supply (ink, rolls, service kits) locally available.
Internal linking to our “Large Format Printers” category, and the “HP DesignJet Accessories” page for easy cross-sell.
Transparent setup & delivery to your office in Nairobi/Bungoma region — ready to plug-in and print.
Related Products / Comparisons
If you’re investigating similar models, here are a few options to compare:
| Model | Best for | Key difference |
|---|---|---|
| HP DesignJet T250 | Slightly higher productivity | Improved speed/volume over T230 |
| Canon imagePROGRAF TA-24 | Colour-critical prints | 12-colour wide-format, higher cost |
| HP DesignJet T230 | Compact footprint, entry large-format | Balanced for A1 output, moderate volume |
Frequently Asked Questions
Q1: Can the DesignJet T230 print on both roll and cut-sheet media?
Yes — it supports roll feed (up to 610 mm wide) as well as manual sheet feed.
Q2: Is this printer suitable for photo-quality printing (e.g., photographs, art prints)?
While the 2400×1200 dpi resolution is strong, the inks are dye (for the C/M/Y) with pigment black, and the model is optimised for line drawings, renderings and technical output rather than high-end photographic printing. For photo-specific work you may want a dedicated photo large-format printer.
Q3: What are connectivity options — can I print from smartphone/tablet?
Yes — the T230 supports USB, Gigabit Ethernet, WiFi (802.11a/b/g/n) and WiFi Direct. You can also use the HP Smart app for mobile printing.
Q4: What should I check in my workspace before purchasing?
Ensure you have ~1.0 m width for the unit (since width is 1013 mm) plus clearance. Also roll-media requires space behind for the roll and exit path. Confirm ventilation and power outlet (100-240 V AC) are suitable. User should check weight (~21.5 kg) and whether a stand is needed.
