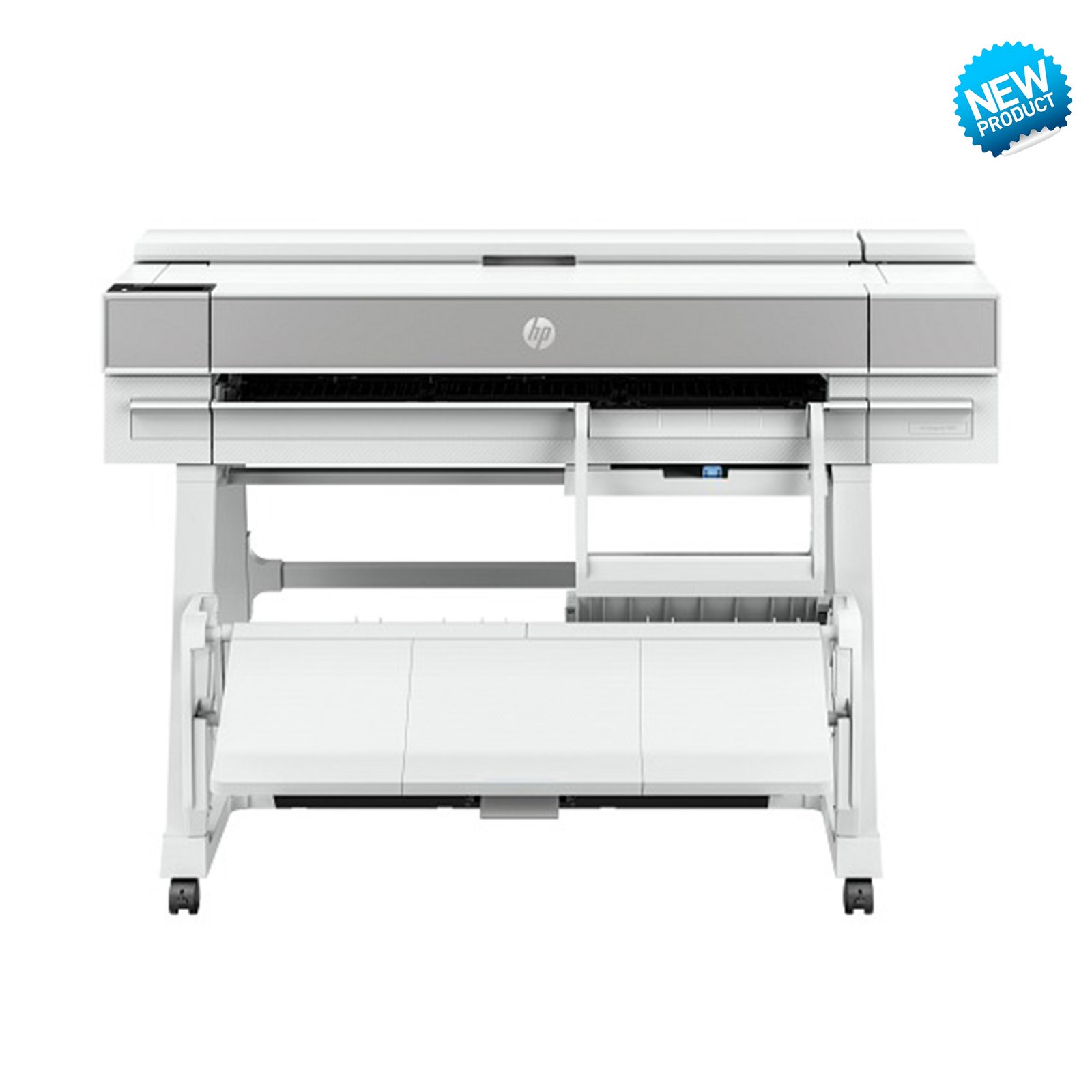

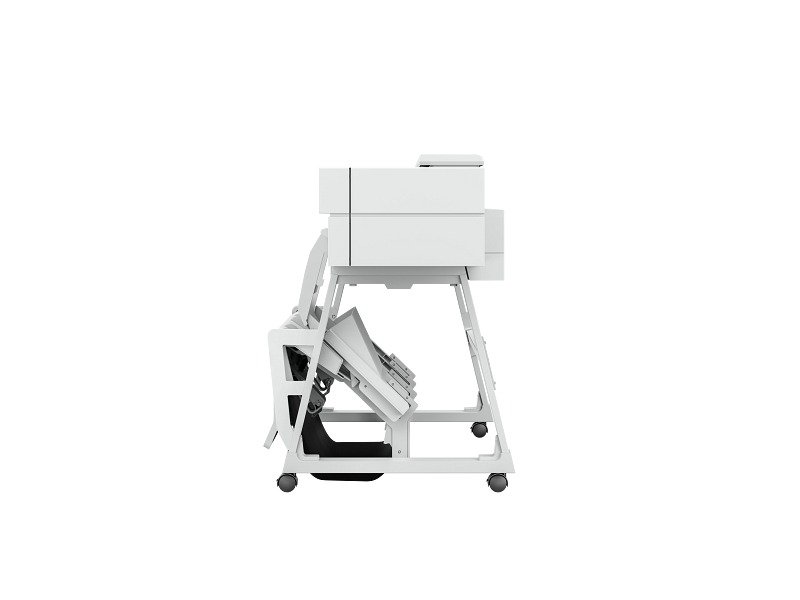

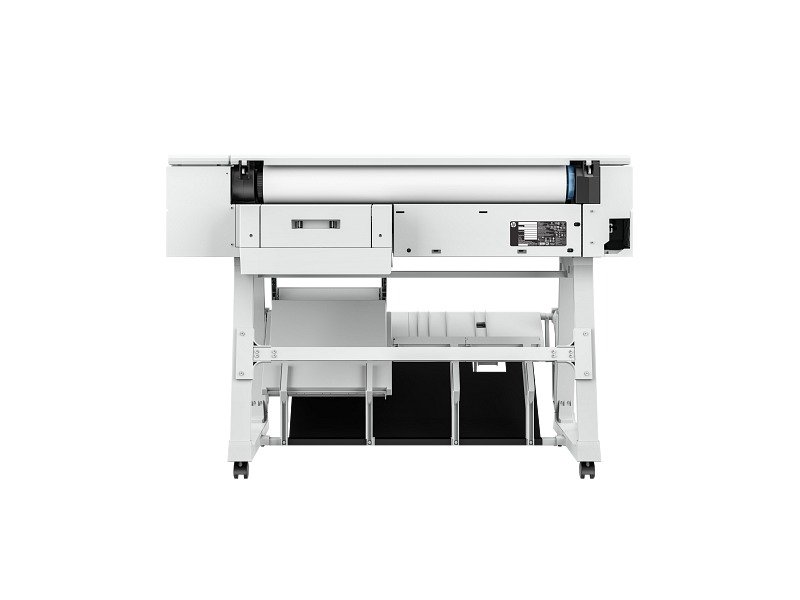

HP DesignJet T950

The HP DesignJet T950 is a 36-inch large format printer designed for technical drawings, CAD files, and high-quality posters. It delivers professional-grade prints for architecture, engineering, and construction projects. Students in technical fields and business professionals rely on it for accurate, detailed output.

Key Features & Benefits

• 36-Inch Print Width: Handles full-size architectural drawings and engineering plans without splitting documents across multiple pages
• Fast Print Speeds: Produces A1/D-size prints in as little as 25 seconds, keeping projects on schedule and reducing wait times
• Built-in Network Connectivity: Multiple users can send print jobs directly from their workstations, eliminating the need to transfer files via USB
• HP Click Printing Software: Simplifies the printing process with an intuitive interface that reduces errors and saves time on complex technical documents
• Automatic Sheet Feeder: Loads single sheets or cut media automatically, making it easy to switch between bond paper, photo paper, and film without manual intervention

Technical Specifications

Print Technology

• Type: HP Thermal Inkjet
• Maximum Print Width: 36 inches (914 mm)
• Print Resolution: Up to 2400 x 1200 optimized dpi

Speed & Performance

• A1/D-size Print Speed: As fast as 25 seconds
• Maximum Print Length: 91.4 m (300 ft)

Media Handling

• Media Types: Bond and coated paper, technical paper, photo paper, proofing paper, film
• Roll Feed: Single roll, up to 36 inches wide
• Sheet Feed: Single-sheet automatic feeder
• Media Weight: 60 to 280 g/m²

Connectivity & Compatibility

• Network: Gigabit Ethernet (1000Base-T)
• USB: Hi-Speed USB 2.0
• Compatible OS: Windows, Mac OS
• Mobile Printing: HP Smart app compatible

Physical Dimensions

• Printer Dimensions: 1625 x 696 x 1137 mm (with stand)
• Weight: Approximately 72 kg (159 lb)

Power Requirements

• Input Voltage: 100-240 VAC, auto-ranging
• Power Consumption: 70 watts (printing), <4.8 watts (sleep mode)

Use Cases & Applications

For Architecture & Engineering Students The HP DesignJet T950 prints detailed floor plans, elevations, and construction documents for class projects and portfolio work. Students can produce multiple iterations quickly, which is essential during the design review process.

For Design & Construction Firms Architects and engineers use the T950 to print permit sets, presentation boards, and site plans. The fast print speed means teams can make last-minute changes before client meetings without missing deadlines.

For Marketing & Graphics Teams The printer handles posters, banners, and display graphics for events and retail spaces. Photo-quality output on glossy media makes it suitable for promotional materials that need to make a visual impact.

For Educational Institutions Campus print labs and engineering departments benefit from the T950’s network capabilities. Multiple students can queue prints remotely, and the automatic sheet feeder reduces the need for constant supervision.

Available at Novelty technologies Solution, Nairobi, Kenya
