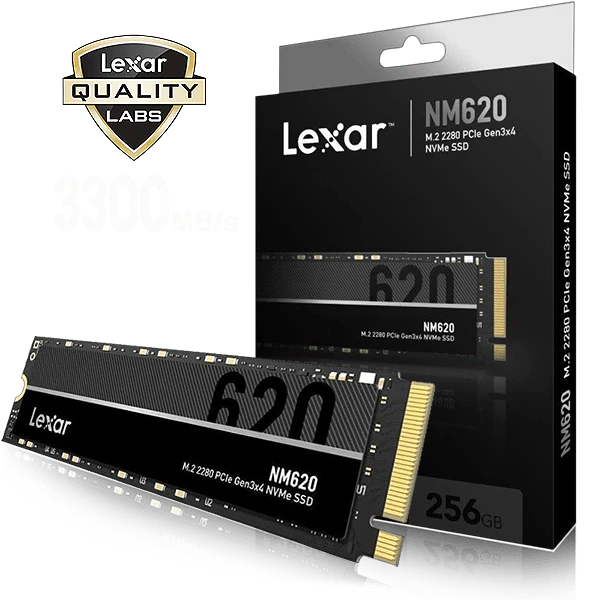

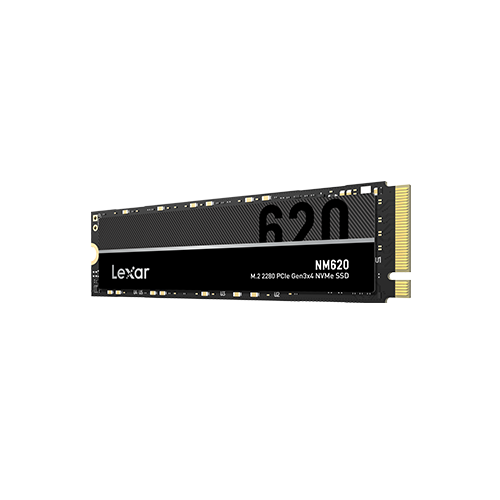

Lexar NM620 M.2 2280 NVMe SSD
Impressive Transfer Speed
NVMe 1.4 Standard
PCle Gen 3×4 Interface
Energy Efficient
Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up to 3500MB/s read and 3000MB/s write1. It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.
With speeds of up to 3500MB/s read, enjoy 6x the speed of SATA SSDs3. The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.
Low-Density Parity Check (LDPC) technology makes data transfers more reliable than ever by fixing data errors before they have a chance to slow you down.
Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration-resistant, making it one robust and reliable SSD.
Reduced power consumption and cooler operation make the battery life last longer than a traditional hard drive.
All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.
Specifications
Form Factor
M.2 2280
Interface
PCIe Gen3x4
Performance
256GB —sequential read up to 3500MB/s, write up to 1300MB/s
IOPS: up to 92/240K
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Dimension (L x W x H)
80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09”
Weight
9g
Warranty
5 year limited warranty
Shock Resistant
1500 G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW
256 GB: 125 TB
DWPD
256 GB: 0.44
NAND flash
3D TLC
MTBF
1,500,000 Hours
1 Up to 3500MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.
2Shock resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.
3Comparison based on internal testing. Actual performance may vary.
[Note]:]
Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.
The actual usable memory capacity may vary. 1GB equals 1 billion bytes.
Product appearance, performance, software offerings, and packaging may vary depending on the ship date and available inventory.
Lexar is not liable for any loss of data or images.
