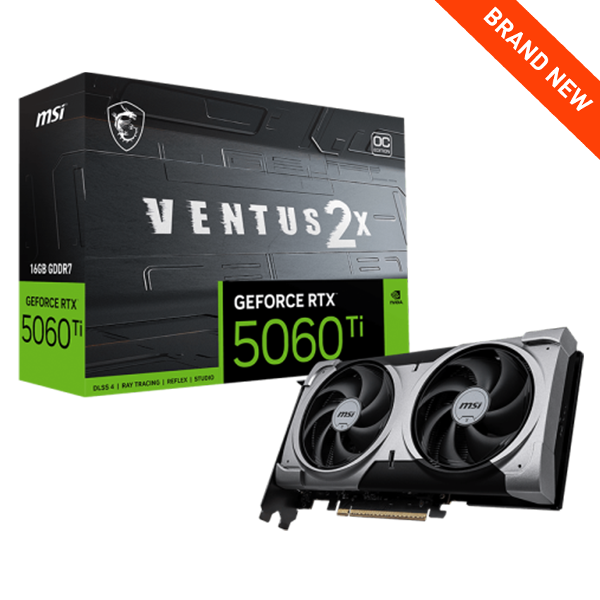

MSI GeForce RTX 5060 Ti 16 GB Ventus 2X PLUS

MSI GeForce RTX 5060 Ti 16GB VENTUS 2X PLUS Graphics Card – NVIDIA Blackwell GB206 Gaming GPU

The MSI GeForce RTX 5060 Ti 16GB VENTUS 2X PLUS is priced at Ksh. 115,000 in Nairobi, Kenya, here at Novelty Tech Solution.

It delivers exceptional 1440p gaming performance powered by NVIDIA’s revolutionary Blackwell GB206 architecture. This graphics card combines cutting-edge fourth-generation RT cores and fifth-generation Tensor cores with an unprecedented 16GB GDDR7 memory configuration, offering outstanding gaming experiences and AI acceleration capabilities in a sleek, efficient design perfect for any gaming build.

GPU Architecture & Core Specifications

• Graphics Processor: NVIDIA GeForce RTX 5060 Ti
• Architecture: NVIDIA Blackwell architecture with fourth-gen RT Cores and fifth-gen Tensor Cores
• GPU Silicon: GB206
• CUDA Cores: 4,608 cores
• RT Cores: 36 RT cores
• TMUs: 144 TMUs
• ROPs: 48 ROPs

Clock Speeds (RTX 5060 Ti 16GB VENTUS 2X PLUS)

• Base Clock: NVIDIA reference specification (~2,407 MHz)
• Boost Clock: 2,602 MHz (GAMING & SILENT Mode)
• Extreme Performance Mode: 2,617 MHz (via MSI Center)

Memory Specifications

• Memory Size: 16GB GDDR7
• Memory Interface: 128-bit
• Memory Speed: 28 Gbps
• Memory Base Speed: 1,750 MHz
• Memory Bandwidth: Approximately 448 GB/s

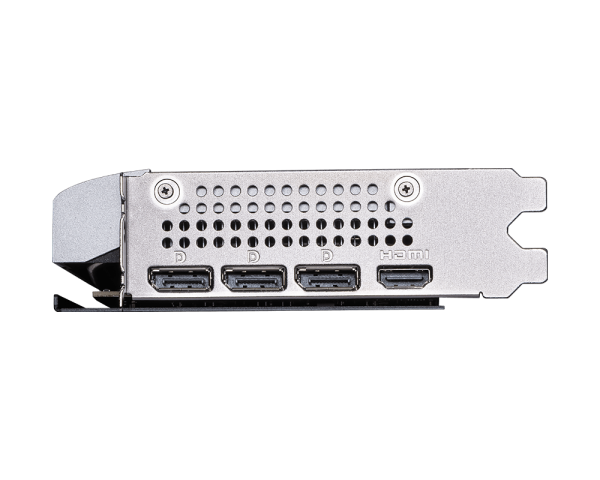

RTX 5060 Ti 16GB VENTUS 2X PLUS: Display Outputs

• DisplayPort: 3 x DisplayPort 2.1b
• HDMI: 1 x HDMI 2.1b (supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

Power & Interface

• Total Graphics Power (TGP): 180W
• PCI Interface: PCI Express 5.0 x16 (uses x8 lanes)
• Power Efficiency: Highly efficient compared to higher-end cards, making it an excellent option for SFF (small form factor) builds

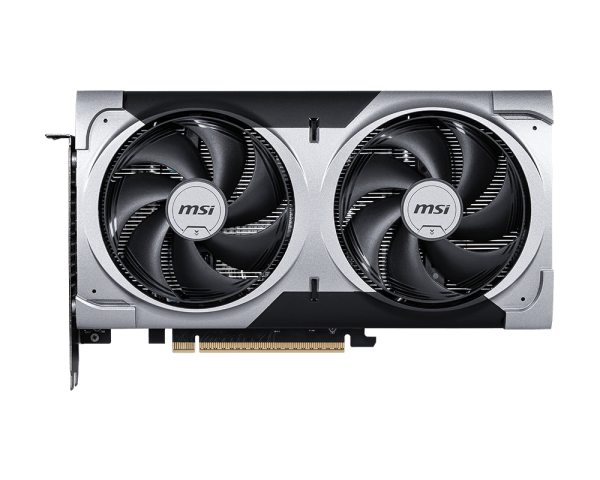

Cooling System – Ventus 2X Design

• Fan Configuration: Dual-fan thermal solution with STORMFORCE Fan for enhanced airflow and superior, quieter cooling
• Design Philosophy: Delivers efficient thermal performance in a durable, sleek design
• Aesthetic: Neutral aesthetic ensures seamless integration into any build

Performance Context

• Gaming Performance: Impressive at 1440p – Doom: Eternal with nightmare settings and DLSS quality delivers around 150 FPS regularly with no stutters
• Target Resolution: Fast 1080p and smooth 1440p gaming

Key Technologies & Features

• Ray Tracing: Game-changing realism of full ray tracing with cinematic quality visuals at unprecedented speed
• AI Acceleration: Breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores
• DLSS Support: DLSS 4 with Multi-Frame Generation capabilities
• AI Workloads: Benefits from all RTX Blackwell advancements, including FP4 support for AI

Model Variants Available

• GeForce RTX 5060 Ti 16G VENTUS 2X PLUS (Standard version)
• GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS (Overclocked version)

RTX 5060 Ti 16GB VENTUS 2X PLUS: Technical Notes

• PCIe Limitation: First Blackwell card where PCIe Gen 5 speeds are limited to x8 instead of x16, but this shouldn’t impact performance
• Memory Advantage: Welcome 16GB VRAM on 128-bit GDDR7 interface
