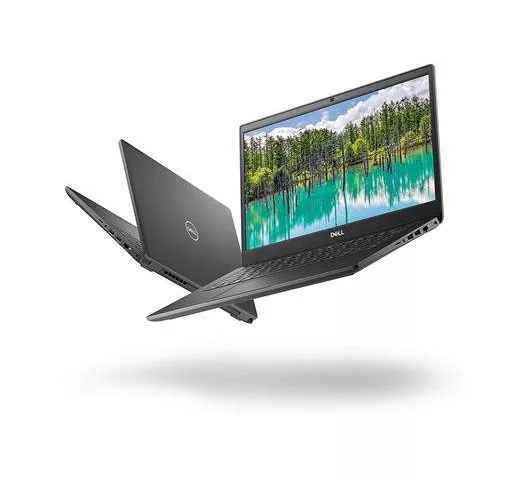

Dell Latitude 3430 Laptop (12th Gen Core i5/ 8GB/ 512GB SSD/ Win11 Pro)

Dell laptops

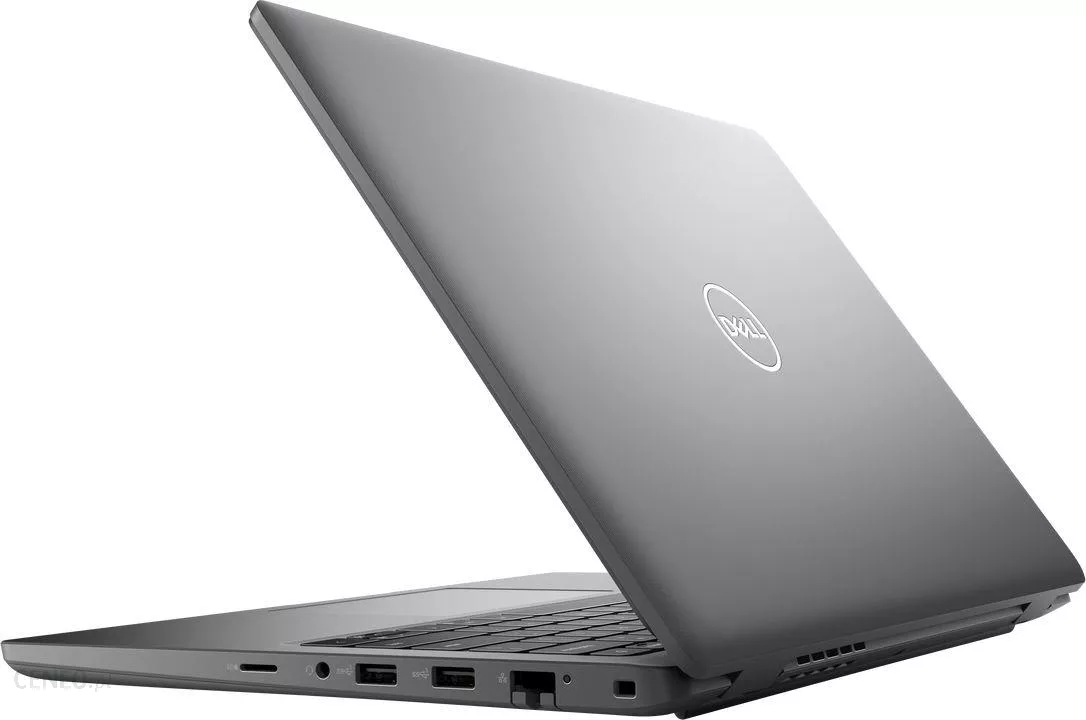

Dell Latitude 3430 PORTS

Audio ports
  • One Universal Audio Port
Video ports
  • One HDMI 1.4b Port
Network ports
  • One Flip-Down Network (RJ45) 10/100/1000 Mbps Port
USB ports
  • One USB 3.2 Gen2 Type-C Port with DisplayPort/PowerDelivery
  • One USB 3.2 Gen1 Port
  • One USB 3.2 Gen1 Port with PowerShare
  • One USB 2.0 Port
PCIe expansion card slots (internal)
  • Not supported
SATA ports
  • One 2.5 in Hard Drive (Optional – offered as secondary storage only.)
mSATA ports
  • Not supported
M.2 ports
  • One M.2 Slot for WWAN (on WWAN I/O Board)
  • One M.2 2230 Slot for Wi-Fi
  • One M.2 slot for 2230/2280 Solid-State Drive
nVME ports
  • Not supported

Dell Latitude 3430


Memory slots Two SODIMM slots
Memory type DDR4
Memory speed 3200 MHz
Maximum memory configuration 32 GB
Minimum memory configuration 4 GB
Memory size per slot 8 GB
Memory configurations supported


  • 8 GB, 1 x 8 GB, DDR4, 3200 MHz


Dell Latitude 3430 BATTERY

Battery type 3-cell rechargeable Li-ion battery (41 Wh)
Battery voltage 11.25 VDC
Battery weight (maximum) 0.17 kg (0.37 lb)


Battery dimensions:
Height 206.40 mm (8.12 in.) 271.90 mm (10.70 in.)
Width 82 mm (3.22 in.) 82 mm (3.22 in.)
Depth 5.75 mm (0.23 in.) 5.75 mm (0.23 in.)


Temperature range:
Operating 0°C to 35°C (32°F to 95°F)
Storage -40°C to 65°C (-40°F to 149°F)
Battery operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.


Dell Latitude 3430 DISPLAY

Display type High Definition (HD)
Touch options No
Display-panel technology Twisted Nematic (TN)
Display-panel dimensions (active area):
Height 173.99 mm (6.84 in.)
Width 309.40 mm (12.18 in.)
Diagonal 355.60 mm (14.00 in.)
Display-panel native resolution 1366 x 768
Luminance (typical) 220 nits
Megapixels 1.049
Color gamut NTSC 45% Typ.
Pixels Per Inch (PPI) 112
Contrast ratio (typical) 300:1
Response time (max) 25 ms
Refresh rate 60 Hz
Horizontal view angle 40 degrees
Vertical view angle 10/30 degrees
Pixel pitch 0.22 mm
Power consumption (maximum) 2.40 W
Anti-glare vs glossy finish Anti-glare



Fingerprint-reader sensor technology Capacitive
Fingerprint-reader sensor resolution 500 dpi
Fingerprint-reader sensor pixel size 108 x 88


External ports
Network port One flip-down RJ45 10/100/1000 Mbps
USB ports
  • One USB 3.2 Gen 2 Type-C port with DisplayPort/Power Delivery
  • One USB 3.2 Gen 1 port
  • One USB 3.2 Gen 1 port with PowerShare
  • One USB 2.0 port
Audio port One universal audio port
Video port One HDMI 1.4b port
Media-card reader One microSD-card slot
Power adapter port 4.5 mm barrel-type
Security-cable slot One wedge-shaped lock slot
SIM-card slot One microSIM-card slot (WWAN only)



Dell Latitude 3430 KEYBOARD

Keyboard type
  • Standard non-backlit keyboard without a number pad
  • Standard backlit keyboard without a number pad
Keyboard layout QWERTY
Number of keys
  • United States and Canada: 79 keys
  • United Kingdom: 80 keys
  • Japan: 83 keys
Keyboard size X=19.05 mm key pitch

Y=18.05 mm key pitch

Keyboard shortcuts
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.


Dell Latitude 3430 CHIPSET

Chipset Intel
Processor Intel 12th Generation Intel Core i5
DRAM bus width 64-bit
Flash EPROM 32 MB
PCIe bus Up to Gen 3


Dell Latitude 3430 CAMERA

Number of cameras One
Camera type
  • HD camera
  • FHD RGB-IR camera
Camera location Front Camera
Camera sensor type CMOS sensor technology
Camera resolution:
Still image
  • 0.92 megapixel – HD camera
  • 2.07 megapixels – FHD RGB-IR camera
  • 1280 x 720 at 30 fps – HD camera
  • 1920 x 1080 at 30 fps – FHD RGB-IR camera
Infrared camera resolution:
Still image 0.23 megapixels
Video 640 x 480 at 30 fps
Diagonal viewing angle:
  • 78.6 degrees – HD camera
  • 87.60 degrees – FHD RGB-IR camera
Infrared camera 87.60 degrees
