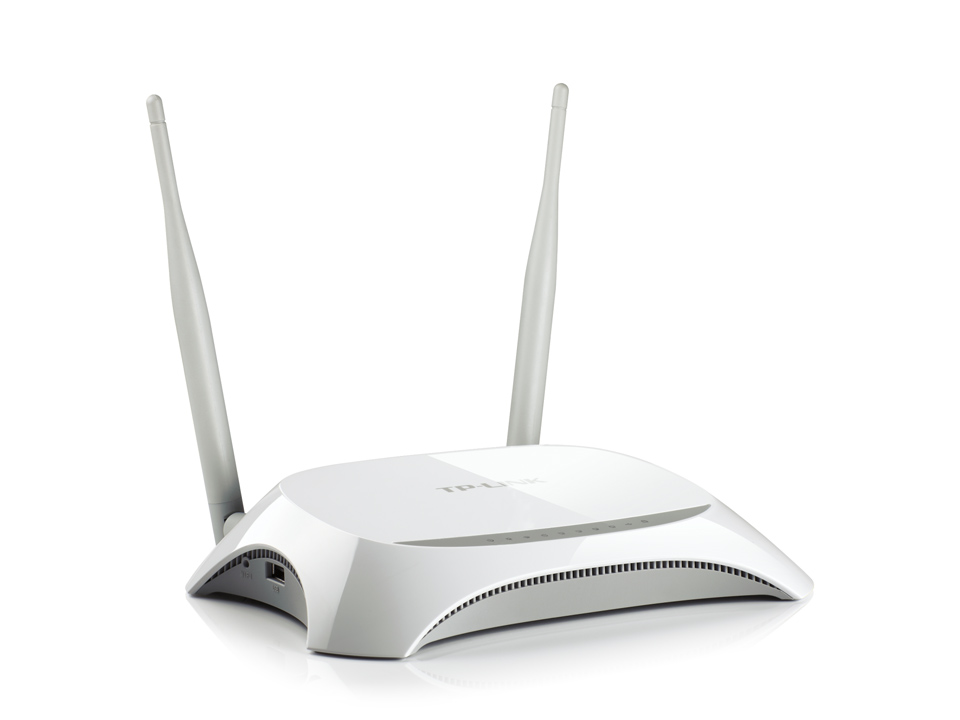

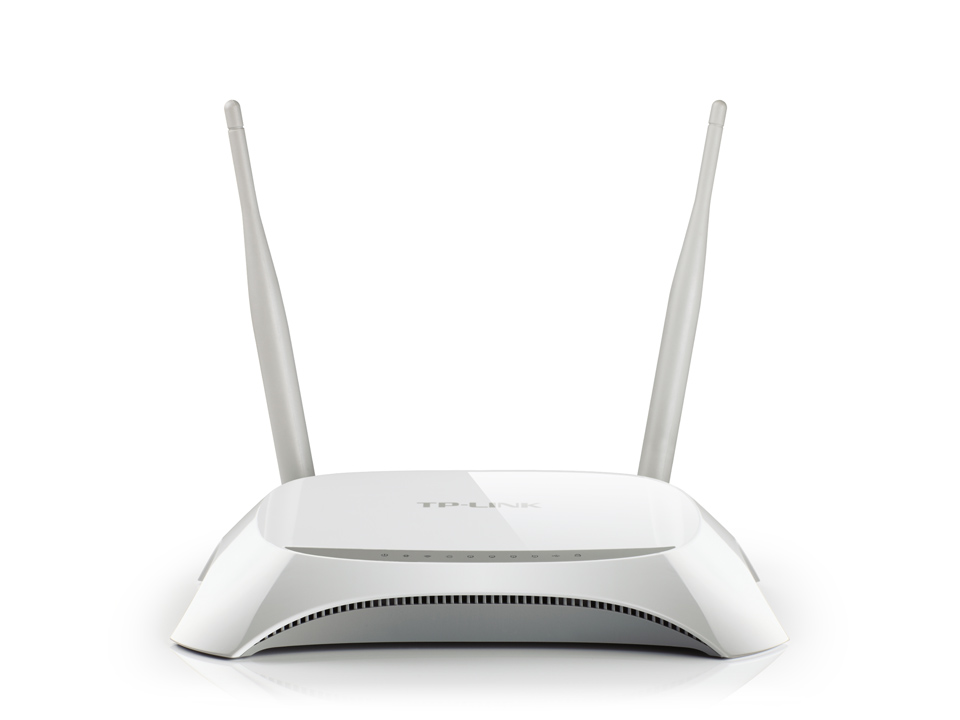

TP-Link TL-MR3420 Wireless N Router

TP-Link TL-MR3420 Wireless N Router

Versatile 3G/4G Wireless N Router for Flexible Connectivity

The TP-Link TL-MR3420 is a multi-functional router that bridges the gap between mobile broadband and traditional networking. It’s ideal for:

• Areas with unreliable or no fixed-line internet
• Users needing a backup internet solution
• Small offices requiring flexible internet options
• Temporary setups or events needing quick internet deployment

Key Features

1. Compatible with 3G/4G USB modems
2. 300Mbps Wireless N speed
3. Multiple Ethernet ports for wired connections
4. Easy setup and management

3G/4G Compatibility

This router offers:

• Support for various 3G/4G USB modems
• Automatic 3G/4G internet connection
• Fallback to WAN when 3G/4G is unavailable

Stay connected with the flexibility of both cellular and wired internet options.

Fast Wi-Fi Distribution

Share your internet connection effortlessly:

• Up to 300Mbps Wi-Fi speed on 2.4GHz band
• Support for multiple concurrent Wi-Fi connections
• Backward compatible with 802.11b/g devices

Ideal for streaming, online gaming, and web browsing across multiple devices.

Wired Connectivity Options

The TL-MR3420 provides:

• 1 × WAN port for DSL/Cable modem connection
• 4 × LAN ports for wired devices

Perfect for smart TVs, gaming consoles, or desktop computers that benefit from a wired connection.

User-Friendly Setup and Control

Getting online is simple:

1. Connect your 3G/4G USB modem or WAN cable
2. Power on the router
3. Connect to the Wi-Fi network
4. Start browsing

Use the intuitive web interface for advanced settings and monitoring.

TP-Link TL-MR3420 Wireless N Router Technical Specifications

Wireless Standards

• IEEE 802.11n (up to 300Mbps)
• IEEE 802.11g/b

Frequency Band

• 2.4GHz

Ports

• 1 × WAN port (10/100Mbps)
• 4 × LAN ports (10/100Mbps)
• 1 × USB 2.0 port for 3G/4G modem

For more wired connections, consider adding a network switch.

Security Features

1. WPA/WPA2-PSK encryptions
2. SPI Firewall
3. IP/MAC Address Binding

Compatibility

• Works with major 3G/4G USB modems (check TP-Link website for compatibility list)
• Supports Windows, Mac, Linux, and mobile devices

Physical Design

• Compact desktop form factor
• Two external antennas for improved Wi-Fi coverage

The TP-Link TL-MR3420’s specifications make it a versatile solution for providing internet access in various scenarios. Its ability to work with both 3G/4G USB modems and traditional WAN connections ensures reliable internet distribution for multiple devices.

Network Expansion Considerations

To enhance your network setup, consider these additions:

• Use high-quality Ethernet cables for stable connections to stationary devices
• Explore range extenders for extending Wi-Fi coverage in larger spaces
• Consider upgrading devices with newer network adapters for optimal Wi-Fi performance

For areas with weak cellular signals, you might want to explore external antennas or signal boosters to improve reception.

The TP-Link TL-MR3420 Wireless N Router offers a flexible and reliable solution for internet connectivity, especially in areas where traditional broadband may be unreliable or unavailable. Its compatibility with 3G/4G USB modems, combined with traditional routing capabilities, makes it suitable for a wide range of users and scenarios, from home offices to temporary setups.
