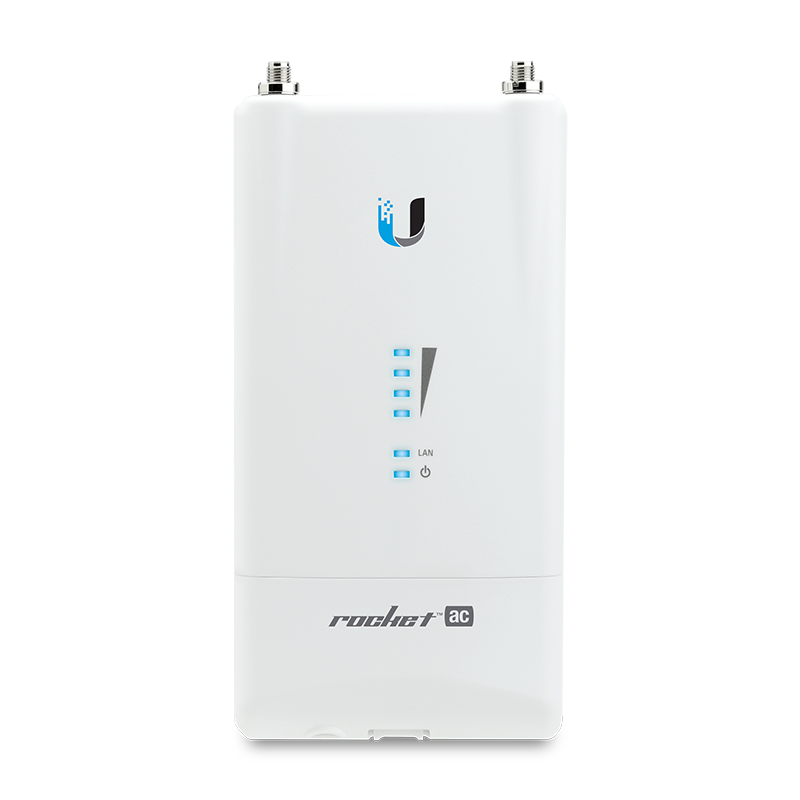

Ubiquiti R5AC-LITE – Rocket AC Lite 5GHz airMAX AC Radio

The Ubiquiti Rocket AC Lite (R5AC-LITE) is a high-performance 5GHz outdoor radio designed for professional Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) networks. It supports airMAX AC technology, delivering high throughput, long-range stability, and excellent noise handling. This radio is lightweight, durable, and engineered to pair perfectly with Ubiquiti airMAX antennas such as RocketDish, Sector antennas, and PrismStation adapters. It is ideal for ISPs, CCTV backhaul, enterprise links, and outdoor wireless distribution.

Key Features & Benefits

• airMAX AC Technology
  Benefit: Provides high throughput, low latency, and improved efficiency for demanding network environments.

• Dual-Polarized 2×2 MIMO Support
  Benefit: Enhances speed, reliability, and link stability for PtP and PtMP networks.

• Gigabit Ethernet Port
  Benefit: Eliminates bottlenecks and enables full AC performance without limiting speeds.

• Lightweight & Compact Outdoor Design
  Benefit: Quick installation and easy mounting in tight, elevated, or tower spaces.

• Wide Antenna Compatibility
  Benefit: Works seamlessly with RocketDish, Sector antennas, and other airMAX AC antennas to build flexible long-range wireless systems.

Technical Specifications

General

• Model: Ubiquiti R5AC-LITE (Rocket AC Lite)

• Frequency Range: 5.15 – 5.85 GHz

• Modulation: airMAX AC (256 QAM), airMAX M support

• Throughput: Up to 450+ Mbps real throughput

• Processor: Atheros MIPS 74KC, 720 MHz

• Memory: 128 MB DDR2

Wireless Performance

• Channel Widths: 20/40/80 MHz

• MIMO: 2×2 Dual-Polarized

• Output Power: Up to 27 dBm (depending on region)

• Operating Modes:

  • PtP

  • PtMP AP

  • Station mode

Interface & Power

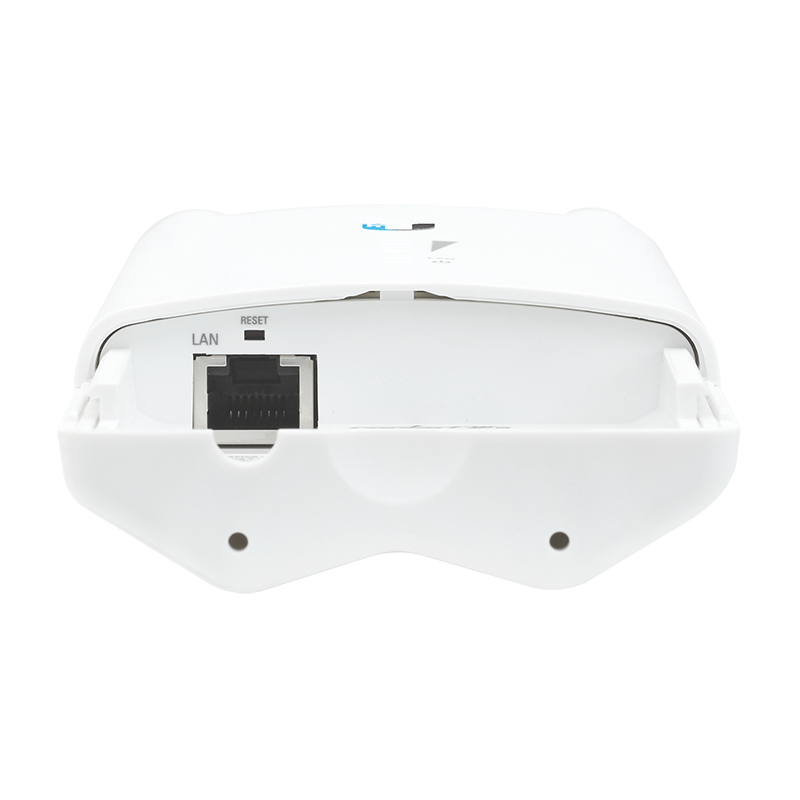

• Ethernet: 1 × Gigabit LAN

• Power Method: 24V Passive PoE

• Power Consumption: < 8W

• PoE Injector Included: Yes

Mechanical

• Enclosure: Outdoor UV-stable plastic

• Dimensions: 162 × 84 × 37 mm

• Weight: ~170 g

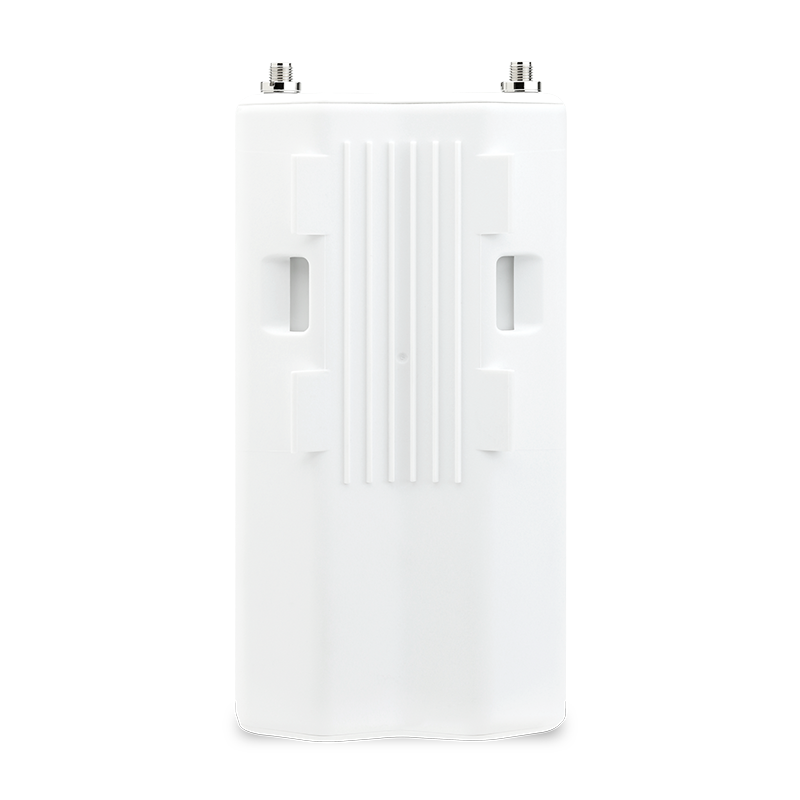

• Mounting: Pole mount with included bracket

Environmental

• Operating Temperature: –40°C to +80°C

• Weather Rating: Outdoor weatherproof

• ESD/EMI Protection: Enhanced surge protection

Antenna Compatibility

• RocketDish 5GHz (RD-5G30, RD-5G31)

• airMAX Sector Antennas

• airMAX PrismStation adapters

• LiteBeam / PowerBeam (with compatible brackets)

Pros & Cons

Pros

• High throughput for long-range outdoor links

• Excellent performance in noisy environments

• Wide compatibility with airMAX antennas

• Lightweight and easy to install

• Reliable AC performance with Gigabit Ethernet

Cons

• Requires a compatible airMAX antenna (not included)

• Uses 24V passive PoE instead of 48V 802.3af/at

• Range depends heavily on antenna choice and alignment

Summary of Specifications

The Ubiquiti Rocket AC Lite (R5AC-LITE) is a 5GHz outdoor radio with airMAX AC technology, 2×2 MIMO, Gigabit Ethernet, up to 450+ Mbps throughput, 24V passive PoE, and wide antenna compatibility. Ideal for long-range PtP and PtMP wireless networks in professional installations.
