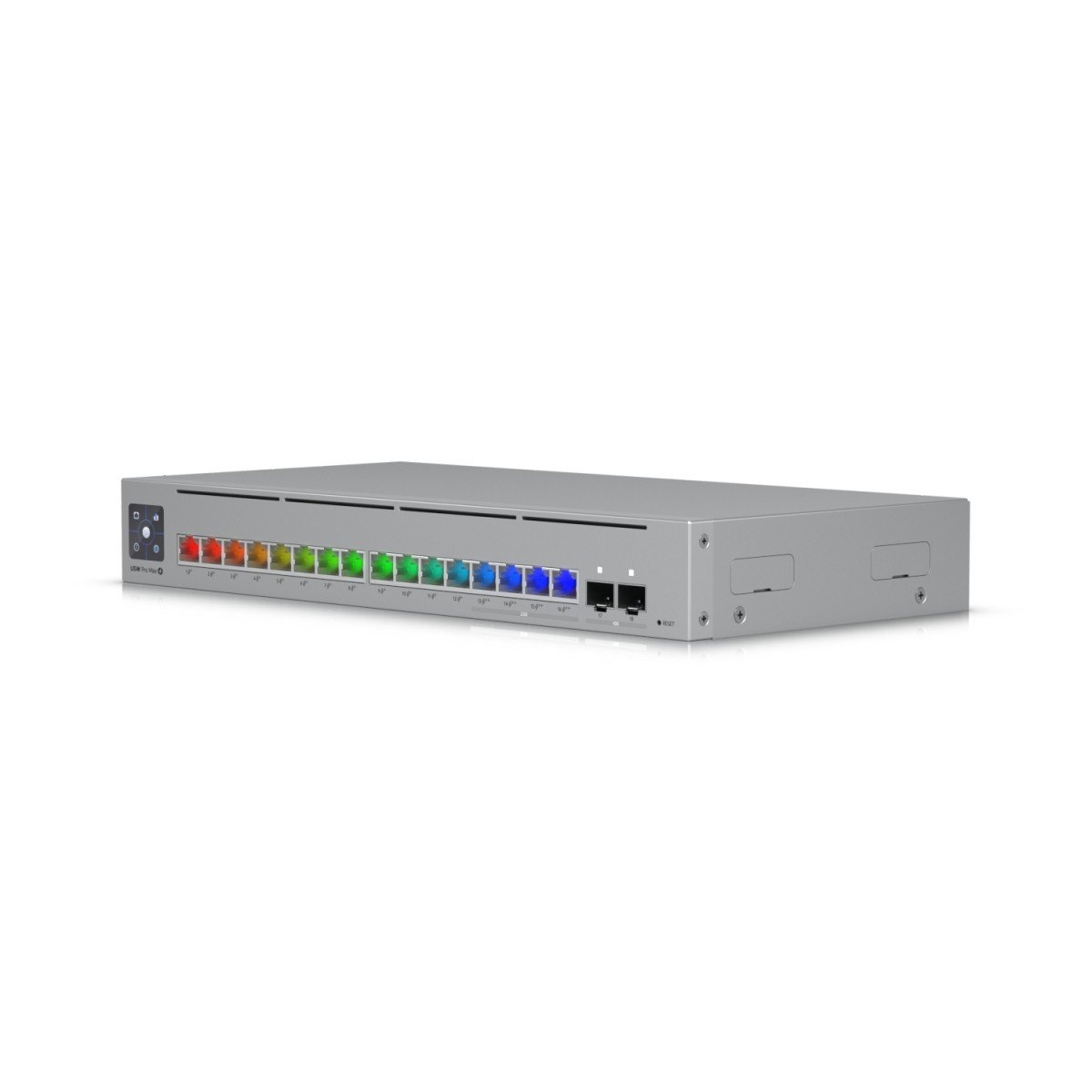

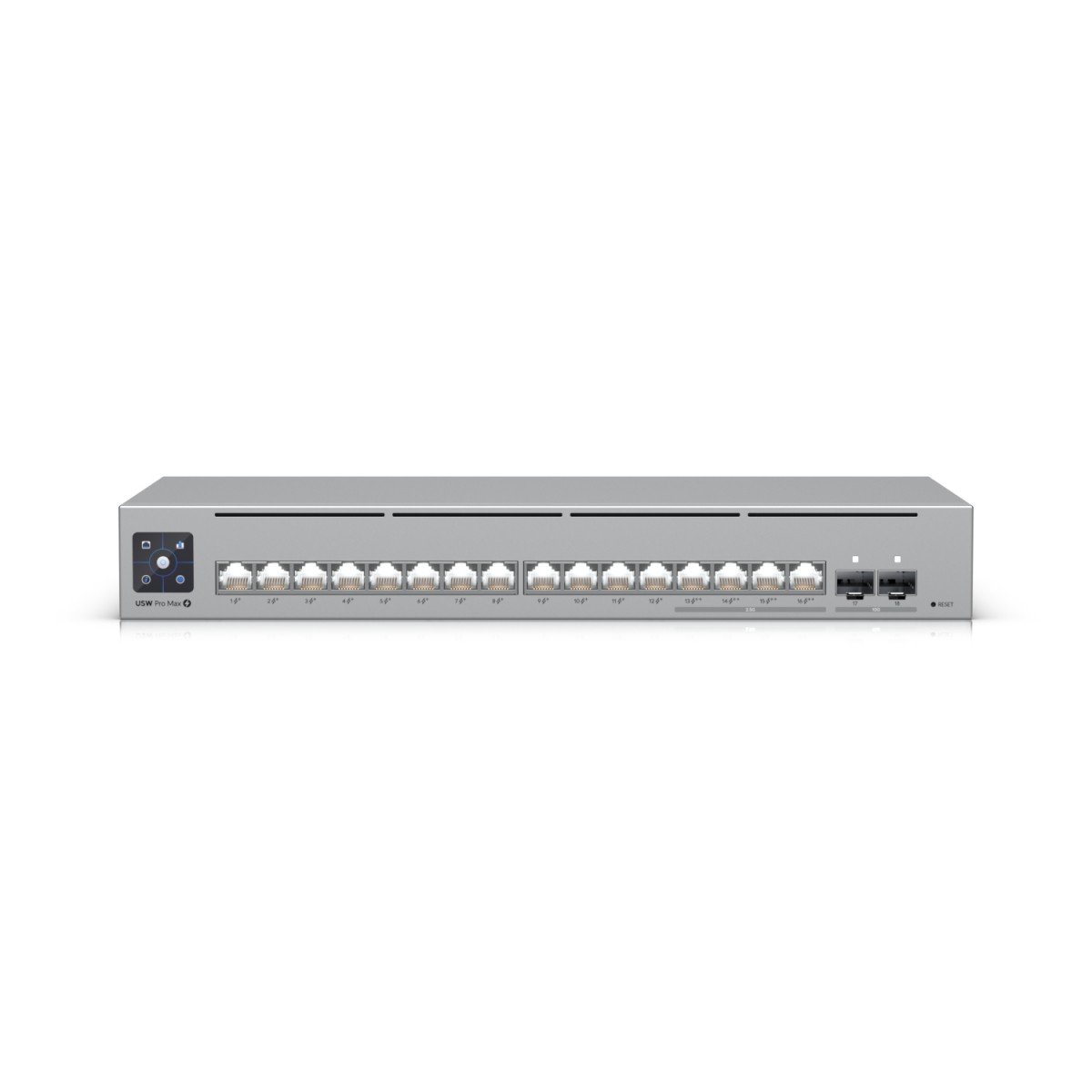

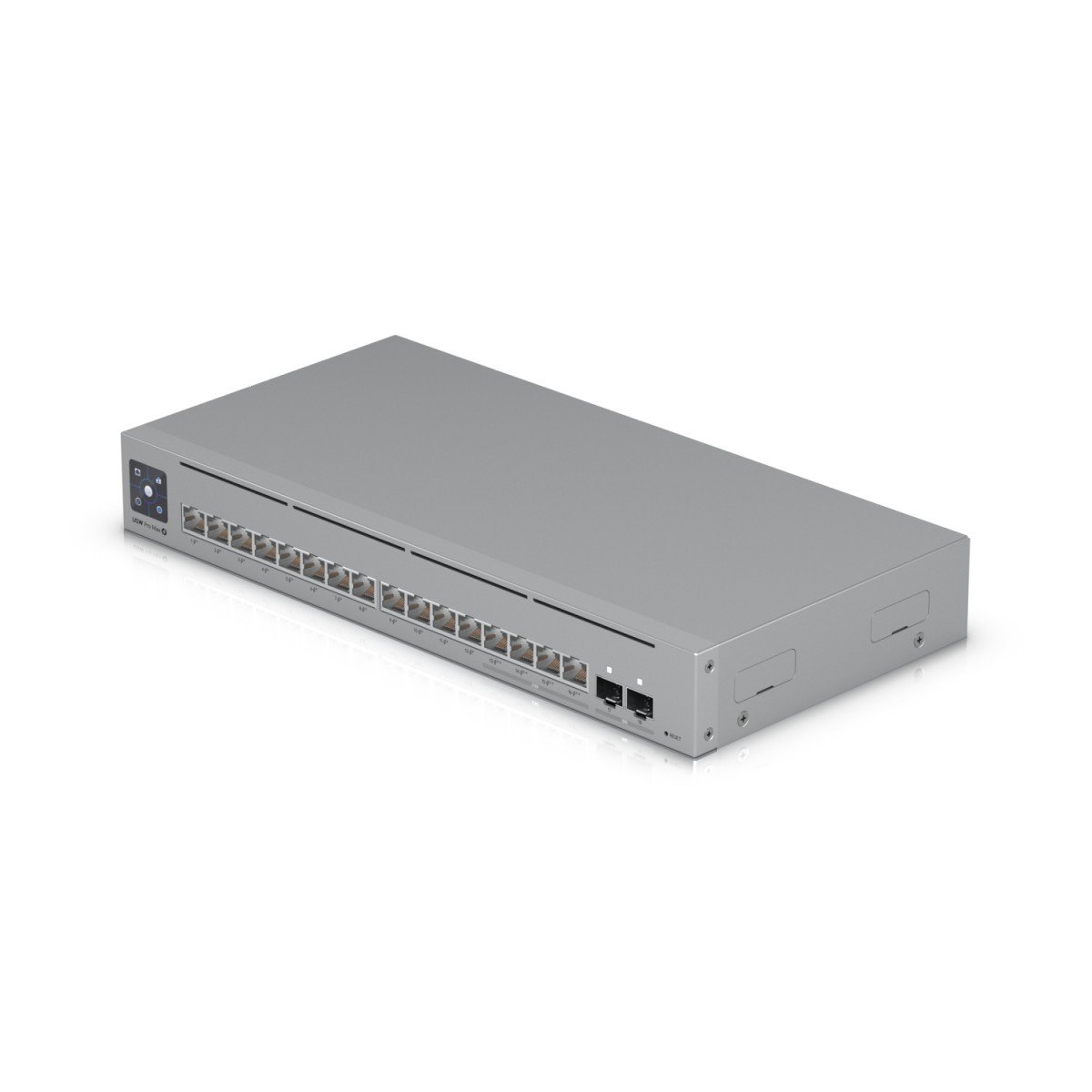

UniFi USW-Pro-Max-16-PoE: The Ultimate Desktop Layer 3 Switch

Overview: Power, Performance, and Portability Redefined

The UniFi USW-Pro-Max-16-PoE is a revolutionary compact switch that defies its size. It packs enterprise-grade features—including Layer 3 routing, Multi-Gigabit 2.5GbE ports, and high-power PoE++—into a sleek, desktop-friendly form factor with versatile mounting options. As the smallest member of the elite “Max” series, it brings the groundbreaking Etherlighting visualization system and robust performance to smaller-scale deployments. This switch is the ideal centerpiece for a high-performance prosumer setup, creative studio, or small office that demands top-tier networking without a full-size rack.

Full Technical Specifications: USW-Pro-Max-16-PoE

Key Features and Benefits: The “Max” Advantage in Miniature

1. Compact Form with Versatile Placement

Unlike its rack-mounted siblings, the Pro-Max-16 is designed for flexibility.

• Desktop Design: Fits neatly on a shelf or desk.

• Wall-Mountable: Save space by mounting it on a wall.

• Rack-Mountable: Use the optional UACC-RMK-Mounting-Kit for integration into a standard 19″ rack.

2. Strategic Multi-Gig & PoE Power

This switch offers a perfectly balanced port configuration for modern mixed-use environments.

• Four 2.5GbE PoE++ Ports: These are the star performers, delivering both high-speed data and up to 60W of power (802.3bt). Perfect for:

  • Wi-Fi 6E/7 Access Points (UniFi U6-Enterprise)

  • UniFi Access HD Pro hubs and smart locks

  • High-performance workstations with 2.5GbE NICs

• Twelve GbE PoE+ Ports: Reliably power and connect all standard devices, including:

  • Additional Wi-Fi 5/6 access points

  • IP cameras

  • VoIP phones

  • IoT devices

3. High-Speed 10G Uplinks for Zero Bottlenecks

The two 10G SFP+ ports ensure your compact switch will never be a network bottleneck.

• High-Bandwidth Uplink: Connect at 10G to a UniFi Dream Machine Pro/SE or a core switch.

• Aggregated Link: Bond both SFP+ ports for a resilient, 20Gbps connection.

• NAS/Server Connection: Directly attach a high-speed storage device for lightning-fast data access.

4. Advanced Layer 3 Management

Don’t let its size fool you. As a Layer 3 switch, it handles complex routing tasks, improving overall network efficiency.

• Inter-VLAN Routing: Route traffic between different VLANs (e.g., Main, Guest, IoT) directly at the switch, reducing load on your main gateway.

• Static Routing: Implement custom network paths for advanced configurations.

5. Revolutionary Etherlighting™ System

This is the switch’s signature visual feature. Etherlighting allows each port’s LED to be customized via the UniFi Controller to show:

• Port Location: Identify a specific device’s port from across the room.

• Speed/Link Status: See link speed (1G, 2.5G) or activity at a glance.

• Native VLAN/Network: Color-code ports by their assigned network (e.g., Blue for Trusted, Yellow for IoT).
  This transforms physical network management and troubleshooting from a chore into an intuitive experience.

Who Is The USW-Pro-Max-16-PoE For?

This switch is the perfect intersection of power, performance, and placement flexibility.

Ideal Use Cases:

• Prosumers & Elite Home Labs: The ultimate switch for a powerful home network, powering APs, cameras, and connecting a high-speed NAS.

• Creative Professionals & Studios: Perfect for a video editor’s desk, powering a Wi-Fi 6E AP and providing a 2.5G/10G connection to a workstation and server.

• Small Offices & Retail Spaces: As the main network switch for a small team, providing power for phones, APs, and POS systems with a future-proof backbone.

• Network Control Rooms: The desktop form factor and Etherlighting make it ideal for a visible location where quick visual status checks are valuable.

• Branch Offices & Work-from-Home Setups: For professionals who need enterprise features in a compact, quiet device.

Frequently Asked Questions (FAQ)

Q: What is the main difference between this and the USW-16-PoE?
A: The Pro-Max-16 is in a completely different class. It adds 2.5GbE ports, PoE++ capability, 10G SFP+ uplinks, Layer 3 routing, and the Etherlighting system, whereas the standard 16-PoE is a basic Layer 2 Gigabit switch.

Q: Can it truly be rack-mounted?
A: Yes, but not natively. You need to purchase the separate UACC-RMK-Mounting-Kit, which allows you to mount two compact UniFi devices (like this switch and a Cloud Key Gen2) side-by-side in a single 1U rack space.

Q: Is the 150W PoE budget sufficient?
A: For its intended use case, yes. It can comfortably power four high-end 2.5GbE APs (~15-20W each) and still have plenty of capacity left for cameras and phones. The budget is managed intelligently by the switch.

Q: Does Etherlighting work in standalone mode?
A: No. Etherlighting must be configured through the UniFi Network Application. Once set, the configuration is stored on the switch.

Q: What is the noise level like?
A: It is designed to be very quiet and suitable for desktop environments. The fan will spin up under high PoE load but is generally not intrusive.

Conclusion

The UniFi USW-Pro-Max-16-PoE is a game-changer in the world of compact networking. It proves that you don’t need a large rack to access the most advanced features like Layer 3 routing, Multi-Gig speeds, and high-power PoE++. Its versatile placement options, combined with the revolutionary Etherlighting system, make it not just a network device, but a centerpiece for a modern, high-performance setup. For the prosumer, creative professional, or small business owner who refuses to compromise, the USW-Pro-Max-16-PoE is the definitive compact switch
