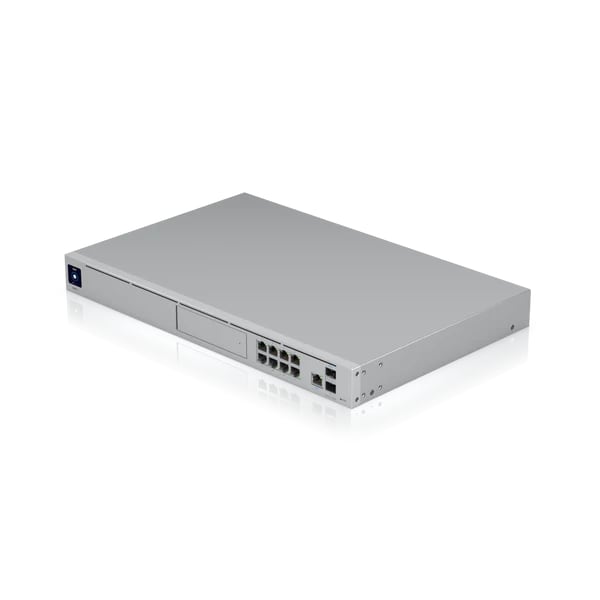

Ubiquiti Dream Machine Pro (UDM Pro): The Complete Rack-Mountable Network Controller

The Ubiquiti Dream Machine Pro (UDM Pro) is a enterprise-grade, rack-mountable networking appliance designed to be the core of a sophisticated UniFi ecosystem. It consolidates a high-performance router, security gateway, network controller, network switch, and a Network Video Recorder (NVR) for UniFi Protect into a single, sleek 1U chassis. It is the definitive upgrade path for users who have outgrown all-in-one units and require scalability, 10G throughput, and professional features.

This guide provides a deep dive into the Ubiquiti Dream Machine Pro, covering its features, performance, and ideal use cases.

Overview and Key Features

The UDM Pro is the central command center for a full UniFi deployment. It doesn’t have a built-in Wi-Fi access point, giving you the flexibility to deploy dedicated, high-performance APs anywhere on your network.

Key Features at a Glance:

• UniFi OS Console: Runs the pre-installed UniFi Network application and can also host UniFi Protect (for cameras), Access (for door control), and Talk (for VoIP).

• High-Performance Routing: Capable of routing up to 8 Gbps with IDS/IPS enabled and up to 10 Gbps without, handling multi-gigabit internet plans with ease.

• 10G SFP+ WAN and LAN Ports: Provides fiber or DAC connectivity for high-speed internet uplinks and backbone connections to a core switch.

• Integrated 8-Port Gigabit Switch: Features (8) GbE RJ45 ports with 1 Gbps uplink for connecting servers, APs, and other wired devices.

• UniFi Protect NVR: Includes a dedicated 3.5″ HDD bay (drive not included) for recording security footage from UniFi cameras.

• 1U Rack-Mountable Design: Built for standard 19-inch server racks, making it ideal for network closets and small server rooms.

Full Technical Specifications

Performance and Real-World Use

Routing and Security:
The UDM Pro is a significant step up from the standard UDM. With IDS/IPS enabled to protect your network from threats, it can handle internet plans up to ~3.5 Gbps. With these features disabled, it can route at line speed up to 10 Gbps. This makes it perfect for businesses with gigabit+ internet connections.

Switching and Connectivity:
The eight built-in GbE ports are convenient for direct connections, but it’s crucial to understand they are served by a single 1 Gbps uplink to the internal router. For best performance, critical devices and additional switches should be connected to the 10G SFP+ LAN port. This 10G port is essential for connecting to a Pro-level UniFi Switch to avoid bottlenecks.

Best Use Cases:

1. Growing Small to Medium Business (SMB): The ideal core for an office network, providing security, scalability, and centralized management.

2. Prosumer / Home Lab Power User: For users with a home server rack, multi-gigabit internet, and a desire for complete network control and segmentation.

3. UniFi Protect Surveillance System: Acts as the brain and recorder for a full UniFi camera system, supporting dozens of cameras with a installed hard drive.

4. Multi-Site Management: Serves as a Cloud Key for multiple remote sites, all manageable from a single UniFi cloud dashboard.

Setup and Management Guide

1. Rack and Connect: Install the UDM Pro in a 1U rack space. For initial setup, connect a computer to one of the LAN ports and the WAN port to your internet modem.

2. Power On and Adopt: The UDM Pro will boot up. Use the UniFi Network mobile app to easily find the device, create an admin account, and adopt it into your network.

3. Web Interface Configuration: For full control, access the UniFi OS dashboard by visiting the device’s IP address (e.g., https://192.168.1.1). Here you can configure all network settings, from Wi-Fi and VLANs to firewall rules and DPI.

4. Install Hard Drive (for Protect): Power down the unit, install a compatible 3.5″ hard drive (e.g., a WD Purple drive), and power it back on. You can then set up the UniFi Protect application to manage your cameras.

5. Connect your Network: Use the 10G SFP+ LAN port to connect to a UniFi Switch for your main network backbone. Use the built-in GbE ports for less bandwidth-intensive devices.

Pros and Cons

Pros:

• All-in-One Console: Consolidates router, switch, controller, and NVR into a single, clean 1U unit.

• Powerful 10G Capabilities: Handles multi-gigabit internet and LAN connections, future-proofing your network.

• Enterprise Features: Offers advanced networking, security, and traffic management tools.

• UniFi OS Scalability: Can run multiple UniFi applications (Network, Protect, Access) simultaneously.

• Rack-Mountable Design: Professional form factor for structured installations.

Cons:

• No Built-in Wi-Fi: Requires the purchase of separate UniFi Access Points.

• Integrated Switch Limitation: The 8 GbE ports share a 1 Gbps internal uplink, which can be a major bottleneck if used as a core switch.

• Hard Drive Not Included: You must purchase a compatible 3.5″ HDD separately to use the UniFi Protect NVR functionality.

• Steeper Learning Curve: Requires more networking knowledge than a typical consumer router to configure optimally.

SEO-Optimized FAQ Section

Q: What is the main difference between the UDM and the UDM Pro?
A: The UDM is an all-in-one desktop unit with a built-in Wi-Fi 5 AP. The UDM Pro is a rack-mountable unit without built-in Wi-Fi but offers 10G SFP+ ports, a built-in NVR for cameras, and can run more UniFi applications.

Q: Can the UDM Pro handle 10 Gigabit internet?
A: With IDS/IPS disabled, the UDM Pro can route at near 10 Gbps. With IDS/IPS enabled for maximum security, its throughput is capped at approximately 3.5 Gbps, which is still sufficient for most multi-gigabit plans.

Q: Do I need a separate switch with the UDM Pro?
A: For small deployments, the 8 built-in ports may suffice. However, for optimal performance and to avoid the internal 1 Gbps bottleneck, it is highly recommended to connect a dedicated UniFi Switch (like a USW-Pro-24) to the 10G SFP+ LAN port.

Q: Does the UDM Pro come with a hard drive?
A: No. The 3.5″ HDD bay is empty. You must purchase a surveillance-rated hard drive (like a Western Digital Purple or Seagate SkyHawk) separately to use the UniFi Protect application for camera recordings.

Conclusion

The Ubiquiti Dream Machine Pro (UDM Pro) is a cornerstone of the UniFi ecosystem, offering an unparalleled blend of performance, features, and integration in a single 1U chassis. It is the logical and powerful next step for anyone serious about building a professional, scalable, and secure network.

Final Verdict: If you are building a rack-mounted network for your business or advanced home lab, require 10G capabilities, or want to power a full UniFi Protect camera system, the UDM Pro is the undisputed champion. If you just need a simple all-in-one for a desk, the standard UDM is a better fit.
