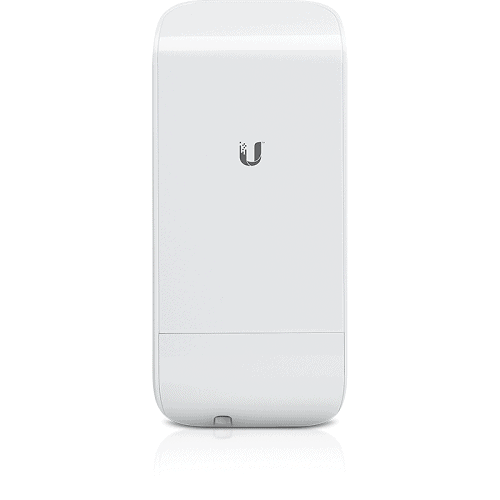

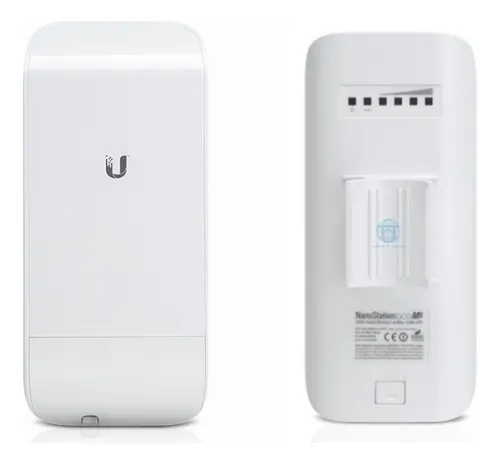

Ubiquiti NanoStation Loco M2 (LOCOM2) | 2.4GHz airMAX CPE & Access Point

The Ubiquiti NanoStation Loco M2 (LOCOM2) is an ultra-compact and cost-effective 2.4GHz wireless radio, perfect for providing reliable Point-to-Point (PtP) and Point-to-Multipoint (PtMP) connectivity. As a staple in the airMAX lineup, it delivers robust performance for short-to-medium range wireless links, especially in areas with high 5GHz signal absorption.

Key Features at a Glance

• 2.4 GHz Frequency Band: Ideal for environments where 5GHz signals are easily absorbed by trees and walls.

• Compact and Discreet Design: Small, low-profile form-factor perfect for residential installations.

• Integrated 8 dBi Antenna: Provides a balanced beamwidth for easy alignment and reliable coverage.

• airMAX Protocol: Features Time Division Multiple Access (TDMA) for reduced latency and increased network capacity.

• Long-Range Capability: Capable of establishing stable links over distances of 5+ km.

• Passive PoE Support: Powered directly through the Ethernet cable for easy installation.

Full Technical Specifications

Detailed Product Overview

Reliable 2.4GHz Connectivity for Challenging Environments

The NanoStation Loco M2 operates in the 2.4 GHz band, which offers superior signal penetration through obstacles like trees, walls, and foliage compared to 5 GHz. This makes it the ideal choice for:

• Dense Urban or Suburban Areas: Where signals must travel through several walls.

• Heavily Wooded Paths: Where 5GHz links would be unstable or fail.

• Cost-Sensitive Deployments: As a reliable client device for non-line-of-sight (NLoS) scenarios.

Compact and Efficient Design

As part of the “Loco” series, its primary advantage is its small size and low cost. The integrated 8 dBi antenna with a wide 120° horizontal beamwidth makes it exceptionally easy to align without the need for precise aiming, simplifying installation for both professionals and DIY users.

Proven airMAX Technology

While an older model, the Loco M2 still runs on Ubiquiti’s robust airMAX platform. The TDMA protocol ensures efficient airtime usage, which is crucial when an access point is communicating with multiple client devices simultaneously. This results in a stable and responsive connection, even during peak usage.

Simplified Installation and Power

The device is powered using Passive Power over Ethernet (PoE), with the included 24V adapter. This means a single Ethernet cable runs from the power adapter to the unit, providing both data and power, which simplifies wiring and protects against lightning surges.

Target Audience & Ideal Use Cases

This device is perfectly suited for:

• Wireless ISPs (WISPs): As an affordable and reliable Customer Premise Equipment (CPE) for subscribers in areas where 5GHz is not viable.

• Home and Business Users: To establish a wireless link for internet access, CCTV camera backhaul, or connecting two buildings within a short distance.

• IoT and Sensor Networks: Providing connectivity for devices that require the longer range and penetration of 2.4GHz.

• Temporary Networks or Events: A cost-effective solution for providing wireless coverage in a specific area.

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of the Loco M2 over a 5GHz model like the 5AC Loco?
A1: The 2.4GHz frequency is the key advantage. It provides better signal penetration through obstacles like trees and walls, making it more reliable for non-line-of-sight (NLoS) or partially obstructed links where a 5GHz signal would be too weak.

Q2: Why is the Loco M2 limited to 100 Mbps?
A2: The Loco M2 has a Fast Ethernet (100 Mbps) port, not a Gigabit port. This is the main bottleneck. Its wireless radio is based on the older 802.11n standard, which is capable of higher speeds, but the physical Ethernet port limits the maximum achievable throughput to around 100 Mbps.

Q3: Can I use the NanoStation Loco M2 to create Wi-Fi for my phone?
A3: No, not directly. The Loco M2 is a wireless bridge. It is designed to connect to another airMAX radio (like an Access Point). You must plug its Ethernet port into a standard Wi-Fi router to then provide Wi-Fi for your phones, laptops, and other devices.

Q4: Is this device still a good buy with newer models available?
A4: Yes, for specific use cases. If you need the superior penetration of 2.4GHz and your internet speed is 100 Mbps or less, the Loco M2 remains an excellent, cost-effective solution. It is a proven, reliable workhorse for basic connectivity.

Q5: What is the typical range of the Loco M2?
A5: With a clear line of sight, the Loco M2 can reliably establish links of 5+ km. Its performance is highly dependent on the environment; its strength lies in maintaining a connection in less-than-ideal, partially obstructed paths.
