Ubiquiti RocketDish 5GHz 30dBi (RD-5G30): The Ultimate Guide

Overview and Introduction

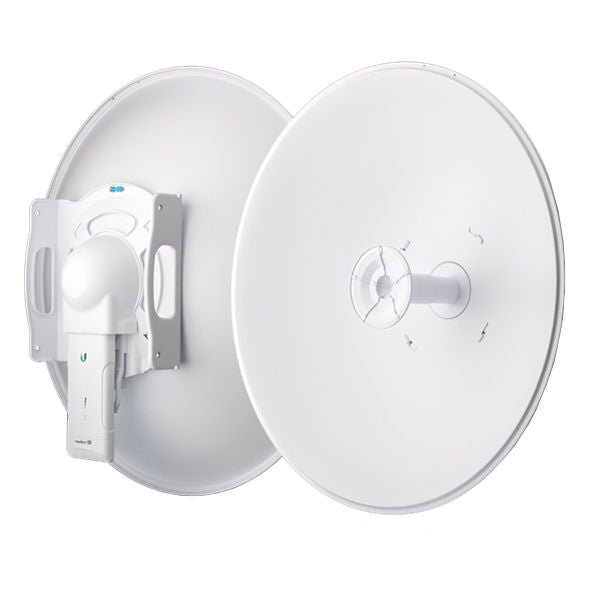

The Ubiquiti RocketDish 5GHz 30dBi (RD-5G30) is not a standalone radio, but a high-performance, parabolic dish antenna designed to be the cornerstone of powerful, long-distance wireless systems. It is part of Ubiquiti’s “Rocket” ecosystem, where you pair a dedicated radio (like the Rocket 5AC Prism) with a specialized antenna for maximum performance.

Its key feature is the high 30 dBi gain achieved through a precise parabolic reflector design. This extremely focused signal is ideal for overcoming challenging distances and interference, making it a top-tier choice for demanding professional applications.

Key Features at a Glance

• Extreme High Gain: 30 dBi parabolic dish for maximum signal concentration and long-range links.

• Narrow Beamwidth: A very tight 4° beamwidth minimizes interference and maximizes signal quality over long distances.

• Rugged, All-Metal Design: Built with a durable aluminum reflector and steel bracket to withstand harsh outdoor environments.

• Rocket Ecosystem Compatibility: Seamlessly integrates with Ubiquiti Rocket radios using a proprietary short cable.

• Professional Performance: The go-to solution for carrier-class PtP backhauls and PtMP base stations serving many clients.

Full Technical Specifications

Performance and Real-World Use

What is the RocketDish RD-5G30 Used For?

1. Long-Range PtP Backhaul: The primary use. Connecting two sites over 50km+ with high throughput. Ideal for linking WISP towers or campus buildings.

2. PtMP Base Station Sector: Serving as a high-performance sector antenna for a base station, providing coverage to a narrow, distant corridor of client devices.

3. Challenging Link Environments: Overcoming weak signal levels in links with obstacles or high noise floors due to its exceptional gain.

4. Carrier-Grade Applications: Used by WISPs and telecom providers for reliable, high-availability backbone connections.

Throughput and Range

• Performance is determined by the paired radio. When combined with a modern radio like the Rocket 5AC Prism, this antenna can facilitate links with real throughput exceeding 450+ Mbps over very long distances.

• Range: With clear Line-of-Sight, links of 50km to 60km+ are achievable and stable. The limiting factor is often radio sensitivity and Fresnel zone clearance, not the antenna’s gain.

Crucial Note: The extremely narrow 4° beamwidth makes precise alignment critical. Using a professional alignment tool or the built-in AirPrism technology in compatible radios is essential for a successful installation.

Setup and Compatibility Guide

What’s in the Box?

• RocketDish RD-5G30 Antenna

• Universal RocketDish Mount

• Mounting Hardware

The Missing Piece: The Rocket Radio

The RD-5G30 is an antenna only. You must purchase a compatible Ubiquiti Rocket radio separately. The antenna connects directly to the radio, which is then mounted on the back of the dish.

Highly Compatible Radios:

• Rocket 5AC Prism (Gen2) – Recommended choice for modern AC performance and easy alignment.

• Rocket 5AC Lite – A cost-effective alternative for slightly shorter links.

• Rocket M5 (Older, but still functional) – For legacy MIMO systems.

• RocketDish Adapter Kit – Allows you to use older Rocket M (single chain) radios.

Step-by-Step Installation Process:

1. Assemble the Mount: Attach the Universal Mount to a stable, vertical pole. Ensure it is secure.

2. Attach the Radio: Mount your chosen Rocket radio to the back of the RD-5G30 antenna using the provided holes and secure it.

3. Connect the Antenna: Plug the integrated, proprietary cable from the antenna directly into the antenna ports on the Rocket radio. It’s a keyed connector for easy installation.

4. Connect Cables: Use the included PoE injector for the Rocket radio. Connect the Ethernet and power cables.

5. Align the Antenna (Critical):

   • This is the most challenging part due to the 4° beamwidth.

   • Use the AirPrism tool in the radio’s airOS interface (if available) for live signal feedback.

   • Make tiny, incremental adjustments to the azimuth and elevation.

   • Tighten all bolts securely once the highest possible signal (RSSI) is achieved.

Conclusion:

The Ubiquiti RocketDish RD-5G30 is a professional-grade antenna for those who demand the utmost in range and signal quality. While it requires a more complex setup and a separate radio investment, its unparalleled 30 dBi gain and robust build make it an indispensable tool for creating carrier-class wireless bridges. If you have a challenging long-distance link, the RD-5G30, paired with a modern Rocket radio, is one of the most powerful and reliable solutions in the Ubiquiti arsenal.
