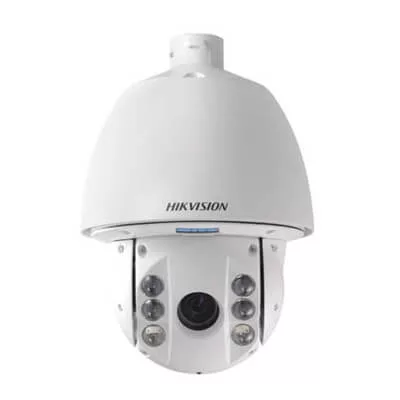

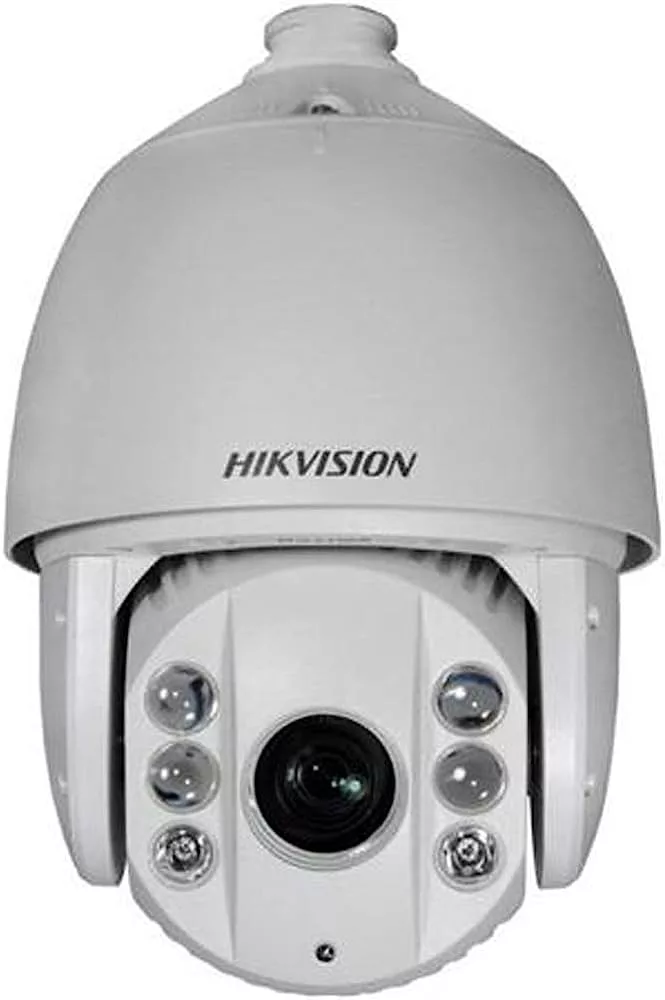

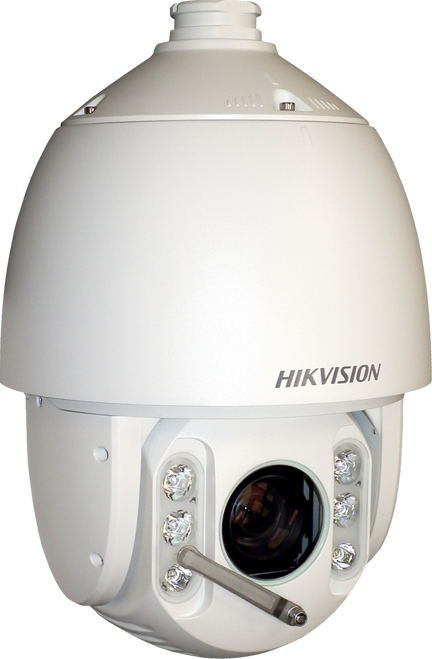

HikVision DS-2AE7230TI-A Turbo HD 1080p Analog IR PTZ Outdoor Dome Camera

More HikVision

The Hikvision DS-2AE7230TI-A Analog IR PTZ Outdoor Dome provides a high-definition analog output of up to 1080p. In TurboHD cameras, an analog signal can be sent over existing coaxial cable, which eliminates the need to run new cables for high-definition video This camera is equipped with a lens that supports 30x optical zoom, and 16x digital zoom. It also includes features such as Digital WDR
(Wide Dynamic Range), which ensures that images are optimal, no matter the lighting conditions.
Available Model:

  • 2Mp CMOS Image sensor
  • Full HD 1080p Video Output
  • 30x optical zoom, 16x digital zoom
  • True Day/Night
  • Up-the-coax function supported
  • Privacy marketing,3D DNR, DWDR, EIS
  • 3D Intelligent Positioning
  • IP66 Protection
  • 24 VAC Power Supply, 50 W

Image Sensor 1/3″ progressive scan CMOS
Maximum Image Resolution 1920 x 1080
Signal System NTSC
Minimum Illumination Color: 0.02 lux @ (f/1.6, AGC on); B/W: 0.002 lux @ (f/1.6, AGC on), 0 lux with IR
White Balance Auto/Manual/ATW/Indoor/Outdoor
AGC Auto/Manual
S/N Ratio ≥ 50 dB
3D DNR Supported
Digital WDR Supported
Video Out HD-TVI, UTC menu
WDR Digital
Shutter Speed 1s to 1/10,000s
Day/Night IR cut filter
Digital Zoom Auto/Semiautomatic/Manual
Privacy Mask 8, selectable color or mosaic
Focus Model Auto/semiautomatic/manual

Hikvision DS-2AE7230TI
Focal Length 4 mm to 120 mm, 30x
Zoom Speed Approximately 3.0 sec. (optical wide to tele)
Angle of View 58° to 1.7° (wide to tele)
Minimum Working Distance 10 mm to 1500 mm (wide to tele)
Aperture Range ƒ/1.6 to ƒ/4.4

Pan and Tilt
Pan/Tilt Range Pan: 360° endless; tilt: -15° to 90° (auto flip )
Pan/Tilt Speed Pan manual speed: 0.1° to 160°/sec., pan preset speed: 240°/sec;
Tilt manual speed: 0.1° to 120°/sec., tilt preset speed: 200°/sec.
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Presets 256
Patrols 8 patrols, up to 32 presets per patrol
Patterns 4 patterns, with a total recording time of not less than 10 minutes
Power-Off Memory Supported
Park Actions Preset/patrol/pattern/pan/tilt/auto/random/frame/panorama scan
PTZ Position Display On/off
Preset Freezing Supported
Scheduled Tasks Preset/patrol/pattern/pan/tilt/auto/random/frame/panorama scan
RS-485 Communication
Diagnosis Supported

IR Range Up to 120 m IR range
IR Intensity Automatically adjusted, depending on the zoom ratio
Input / Output
Monitor Output HD 1080p output, 1.0 V [p-p]/75 Ω, NTSC composite, BNC
RS-485 Interface Half-duplex mode; self-adaptive Hikvision, Pelco-P, Pelco-D protocol
UTC Function HIKVISION-C (need UTC controller)

Hikvision DS-2AE7230TI
Power 24 VAC, maximum 50 W
Working Temperature -22° F to 149° F (-30° C to 65° C) (outdoor dome)
Humidity 90% or less (non-condensing)
Protection Levels IP66; TVS 4,000 V lightning protection, surge protection, and voltage transient protection
Dimensions φ8.66″ × 13.91″) (φ220 mm ×353.4 mm) (outdoor)
Weight 9.92 lbs (4.5 kg)

Make Hikvision
Manufacturer Hikvision
Category CCTV>Dome cameras
Model code DS-2AE7230TI-A
Chip Inch Size 1/3 inch
Colour Type True Day / Night
HD Yes
Sensitivity lux 0 lux
Dome Type PTZ
Pan Speed o/ sec 0.1 ~ 160 o/ sec pan speed
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Tilt Speed o/ sec 0.1 ~ 120 o/ sec tilt speed
Mount Type Wall mount
Electrical Specifications Voltage: 24 V AC
Power Consumption: 30 W
Focal length 4 ~ 120 mm
Presets 256
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range PAL: 1 ~ 1/10,000s, NTSC: 1 ~ 1/10,000s
S/ N (Signal/ Noise) Ratio dB > 50
Signal Mode PAL / NTSC
Built-in IR LED Yes
Video Output 1.0V[p-p] / 75 ohms, NTSC (or PAL) composite, BNC
Zoom Ratio x16
Network Properties Control: PTZ
Image Frame Rate: 30 fps
Inclusive DVR/ Web Server: DVR
Physical Specifications Dimensions mm: 220 x 353
Weight g: 4,500
Environmental Specifications Operating Temp oC: -30 ~ +65 C (-22 ~ +149 F)
Operating Humidity %: 0 ~ 90
Protection: IP66
Additional info Hikvision DS-2AE7230TI-A is an HD PTZ dome camera which features auto focus, auto white balance, backlight compensation and auto/manual day & night switc, privacy masks programmable, 3D DNR, digital WDR.
