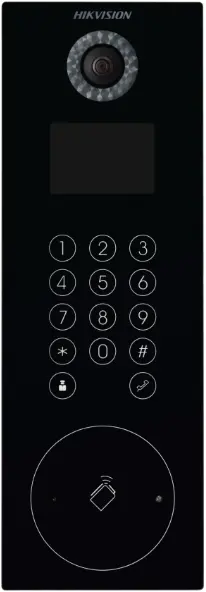

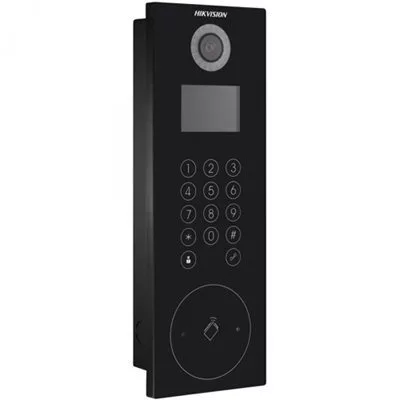

HikVision DS-KD8102 KD8 Series Pro Acrylic Door Station

System Parameters

  • ProcessorHigh-Performance Embedded SOC Processor
  • Operation SystemEmbedded Linux Operation System


Network Parameters

  • Ethernet10/100/1000 Mbps Self-Adaptive Ethernet
  • Network ProtocolTCP/IP, RTSP


Device Interfaces

  • Network Interface1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
  • I/O Input8
  • I/O Output4
  • RS-4851 RS-485 Half-Duplex Port
  • Wiegand1 Wiegand Port for Accessing Wiegand IC Card Reader
  • USB1 USB 2.0, Supporting U-Disk



  • Power Supply12 VDC
  • Power Consumption≤15 W
  • Working Temperature-40° C to +60° C (-40° F to 140° F)
  • Working Humidity10% to 90%
  • IP Protection LevelIP65
  • CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)418 mm × 145 mm × 61 mm (16.5″ × 5.7″ × 2.4″)
  • MaterialPlastic


  • IP door station
  • 1.3 MP Door station, Visible Light Supplement, Plastic
  • 3.5 inch LCD, 3.5″ Capacitive Touch Key
  • Wiegand & RS-485, 8-ch alarm input, 4-ch alarm output
  • IP65, USB 2.0, 12VDC


The HikVision DS-KD8102-V is a video intercom door station offering HD video surveillance with high-performance CMOS, tampering alarm function, and IR detection. It also features noise suppression and echo cancellation to produce high-quality audio. The DS-KD8102-V provides security and flexibility for building entry.

Typical Application

HikVision DS-KD8102-V Key Features

  • Video intercom function
  • Access control function
  • Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards (This function will be invalid if the card has been issued via the client.)
  • Card readers supported
  • Self-adaptive visible light supplement
  • HD video surveillance with high-performance CMOS
  • Noise suppression and echo cancellation
  • H.264 video compression
  • Low illumination
  • Remote unlocking via the client or the app
  • Remotely answering the call via the client or the app
  • Tampering alarm and door magnetic alarm supported
  • Auto-uploads alarm messages to the master station or the client once the duress code is entered to open the door
  • Message notification function
  • Auto-uploads captured pictures to FTP or the client
